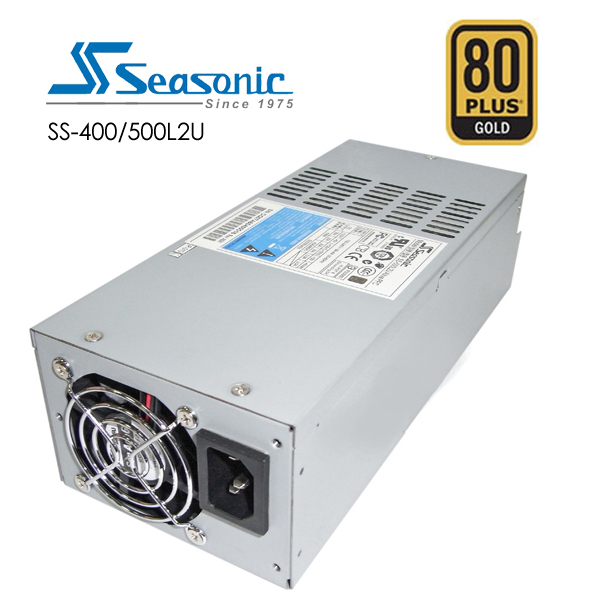

Switch Mode Power Supply - Intel EPS 12V- SS-400/500L 2U Active PFC

Features:

  • Specification compliance: Intel EPS 12V
  • DC to DC converter design
  • High efficiency and reliability
  • Low THD
  • Low ripple & noise
  • Super low noise fan control
  • Short circuit protection on all outputs
  • Over voltage protection
  • Over power protection
  • 100% hi-pot test
  • 100% burn in, high temperature cycled on/off

DC Outputs:

  • Model: SS-500L2U Active PFC
  • DC Outputs:

+3.3V

+5V

+12V(Combined)

-12V

+5Vsb

20A

20A

40A

0.3A

2.5A

100W*

480W

3.6W

12.5W

(Remarks: * Combined +3.3VDC & +5V DC maximum power)
  • Total Power: 500W
  • Input Type: Full range

Electrical Specifications:

  • Input frequency: 47/63 Hz
  • Inrush current, cold start: 100A max.
  • Efficiency, at normal input voltage: > 87%
  • Line regulation: +/-1% typical
  • Load regulation: +/-5% typical
  • Cross regulation: +/-5% typical
  • Ripple / noise: 1%
  • MTBF, full load @ 25℃ amb. : >100K hours (Excluding the DC fan)
  • Power Factor Correction: Active PFC 99% typical

Certifications:

  • Satety: CUL, UV, CB
  • EMC: CE, Fcc, C-Tick

Specifications:

  • Dimension: L245 x W100 x H70mm
  • Connectors: Customized modular cables
