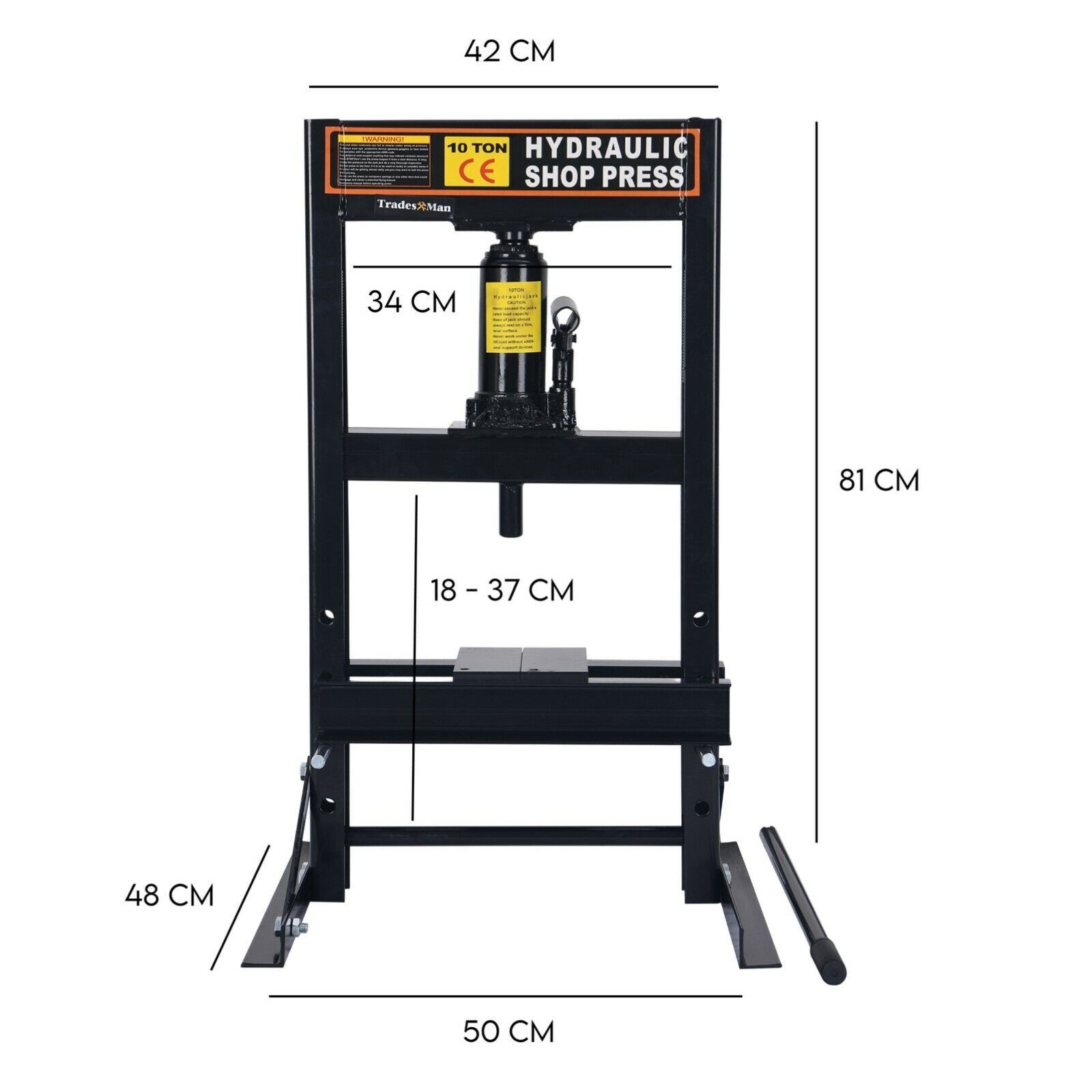

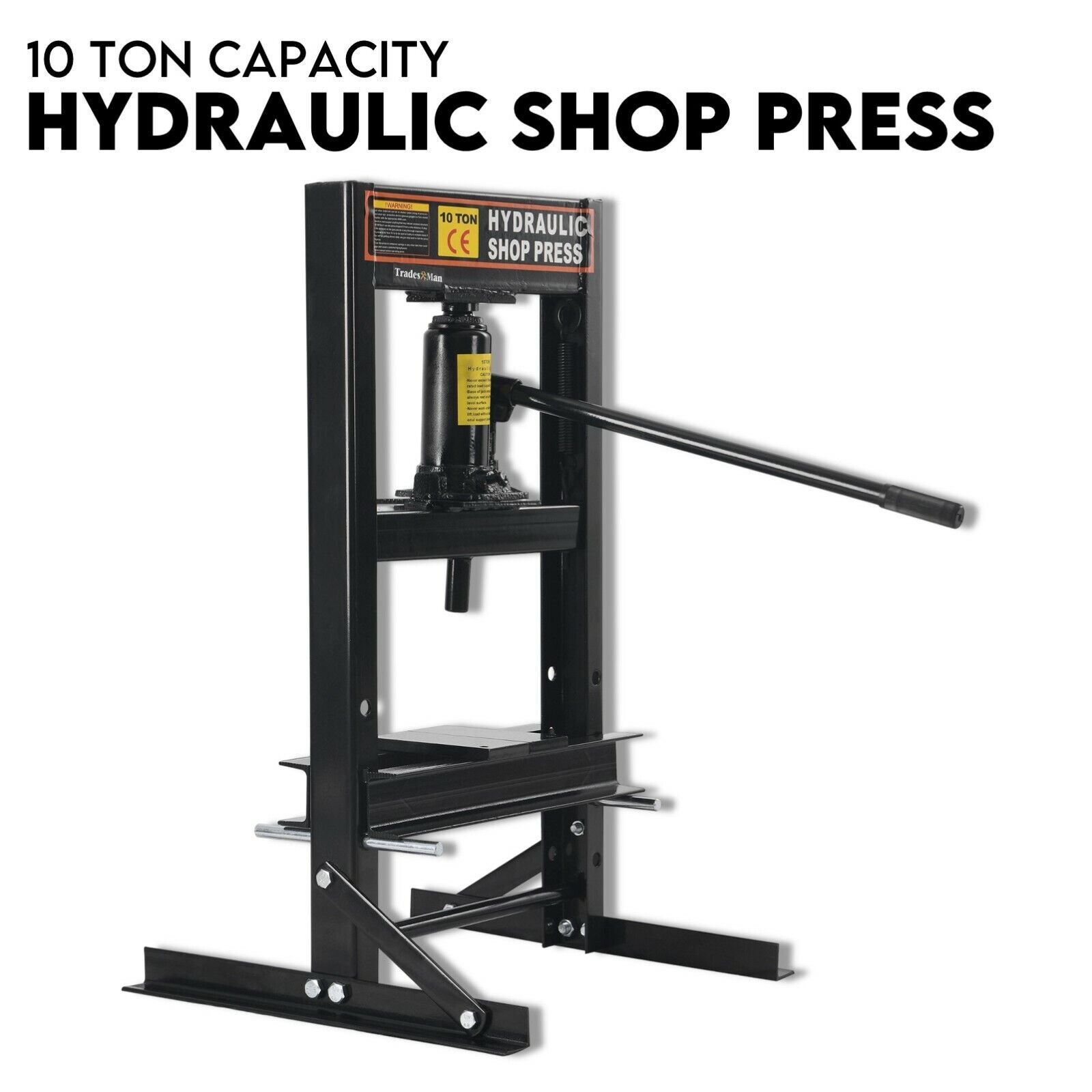

The TRADESMAN heavy-duty steel H-frame hydraulic garage/shop floor press is designed for straightening, bending, pressing bearings, installing bearings and stamping.The hydraulic cylinder is equipped with a 10-ton capacity bottle jack.
Manually raise and lower the table surface for the job's best working distance. Includes arbour press stamping plates and features high-quality precision springs for slowly and safely bouncing back after pressing down operation.
The piston ram is treated and polished to resist scratching. After a thorough chemical wash, ensure a long-lasting finish and help prevent rust. It's treated with powder-coated, lead-free paint, providing a durable oil, grease, and dirt-resistant coating for easy cleanup. The 22,000-lbs pressing capacity provides exceptional versatility for use with all sorts of projects.

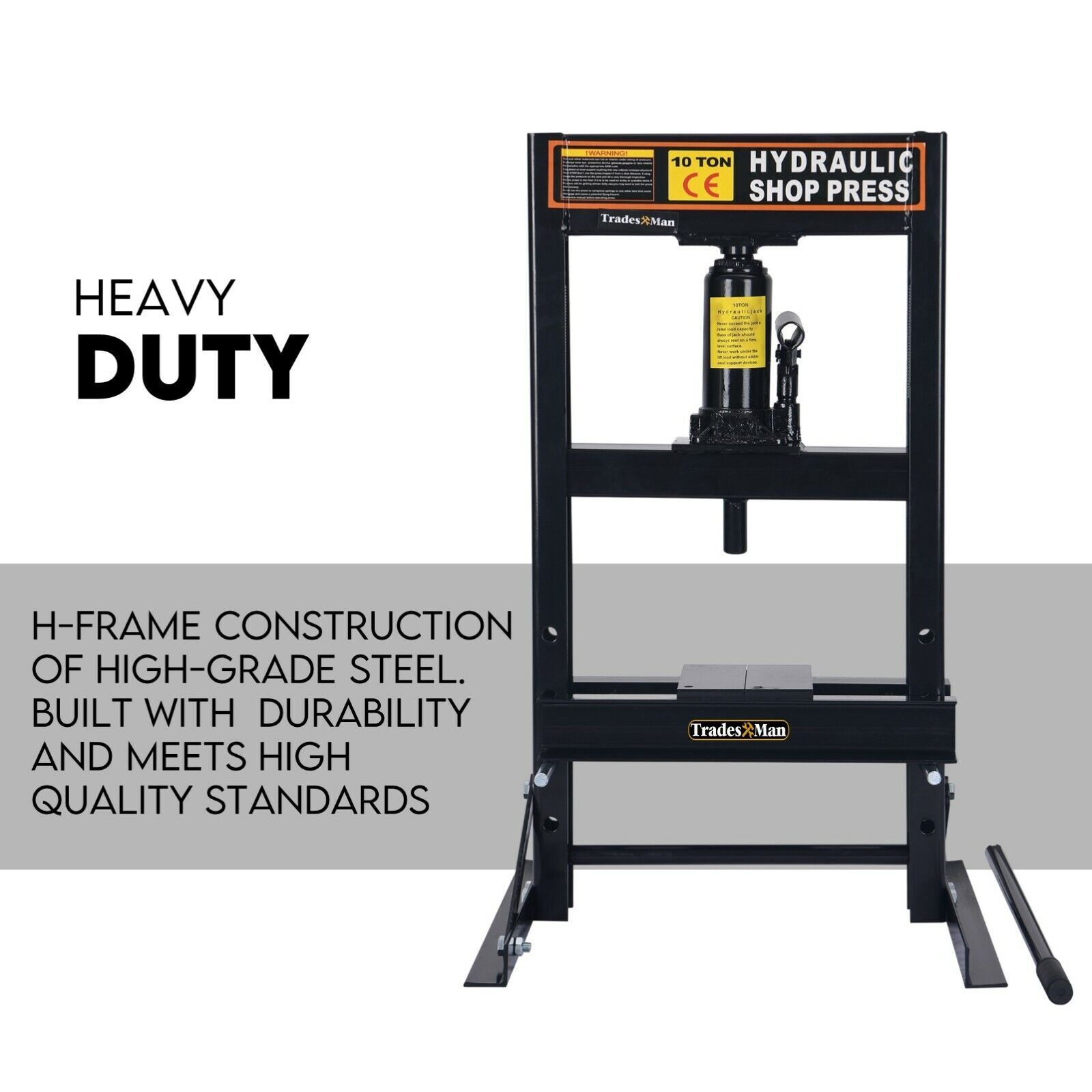

  • Heavy-duty H-frame steel construction provides quality and durability

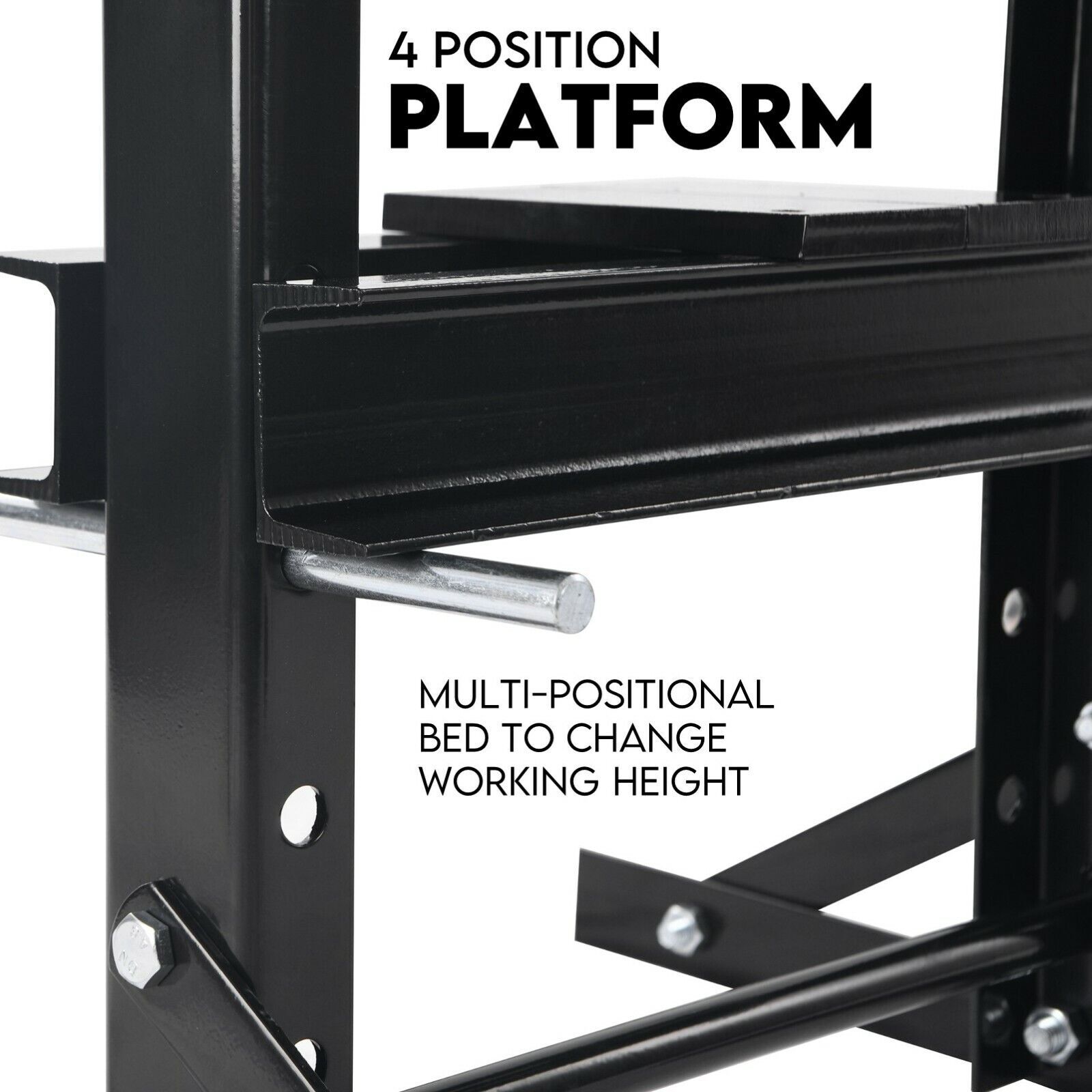

  • 4 position working platform

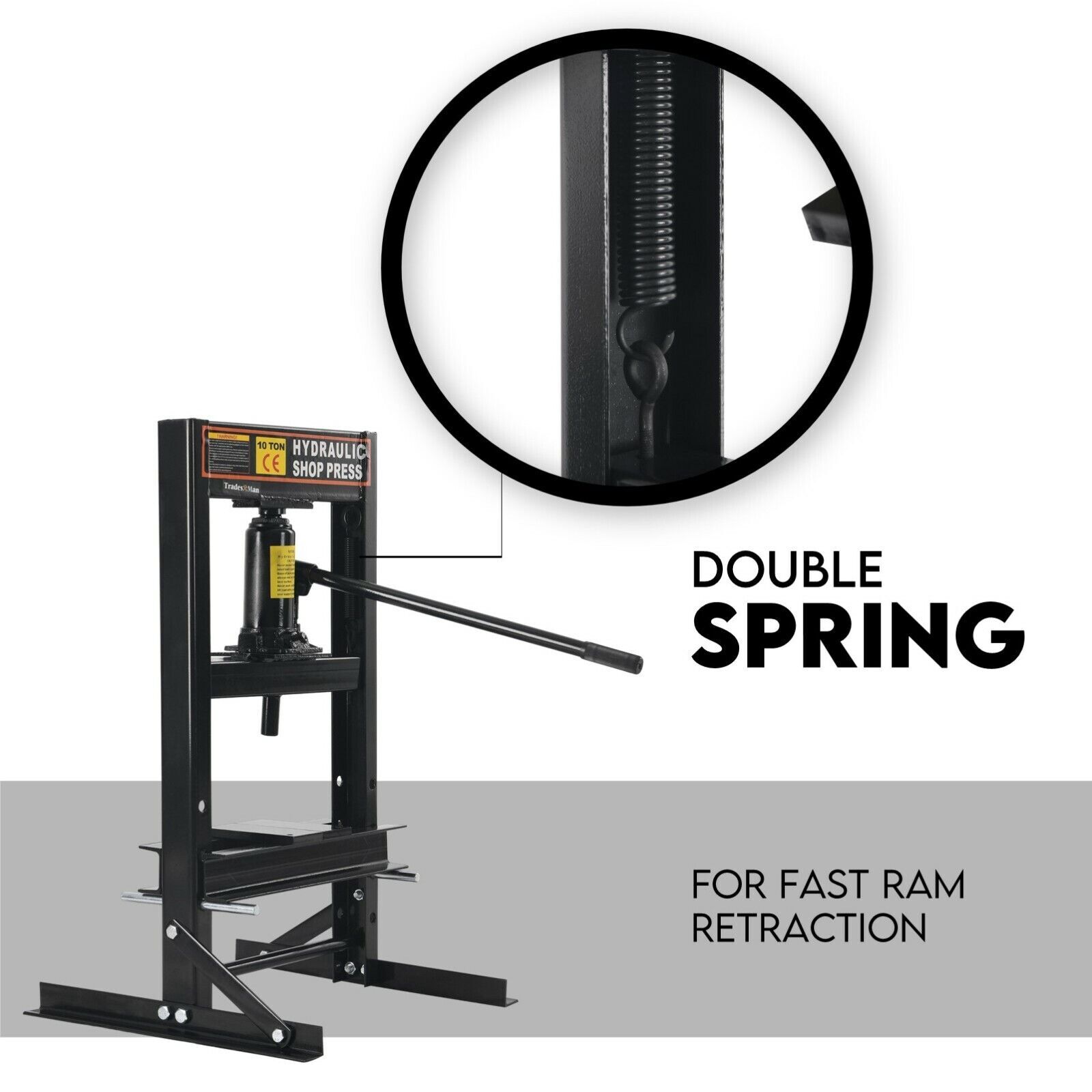

  • High-quality springs for slowly and safely bouncing back after pressing down operation
  • Hydraulic steel cylinder unit helps to extend the service life
  • Heavy-duty all-steel construction - 26kg total


  • Pressing Force: 10 Ton
  • Ram Stroke: 125mm
  • Press Plates: Powder Coated Steel
  • Colour: Black
  • Working platform: 4 position
  • Product weight: 26kg

1 - Hydraulic Shop Press

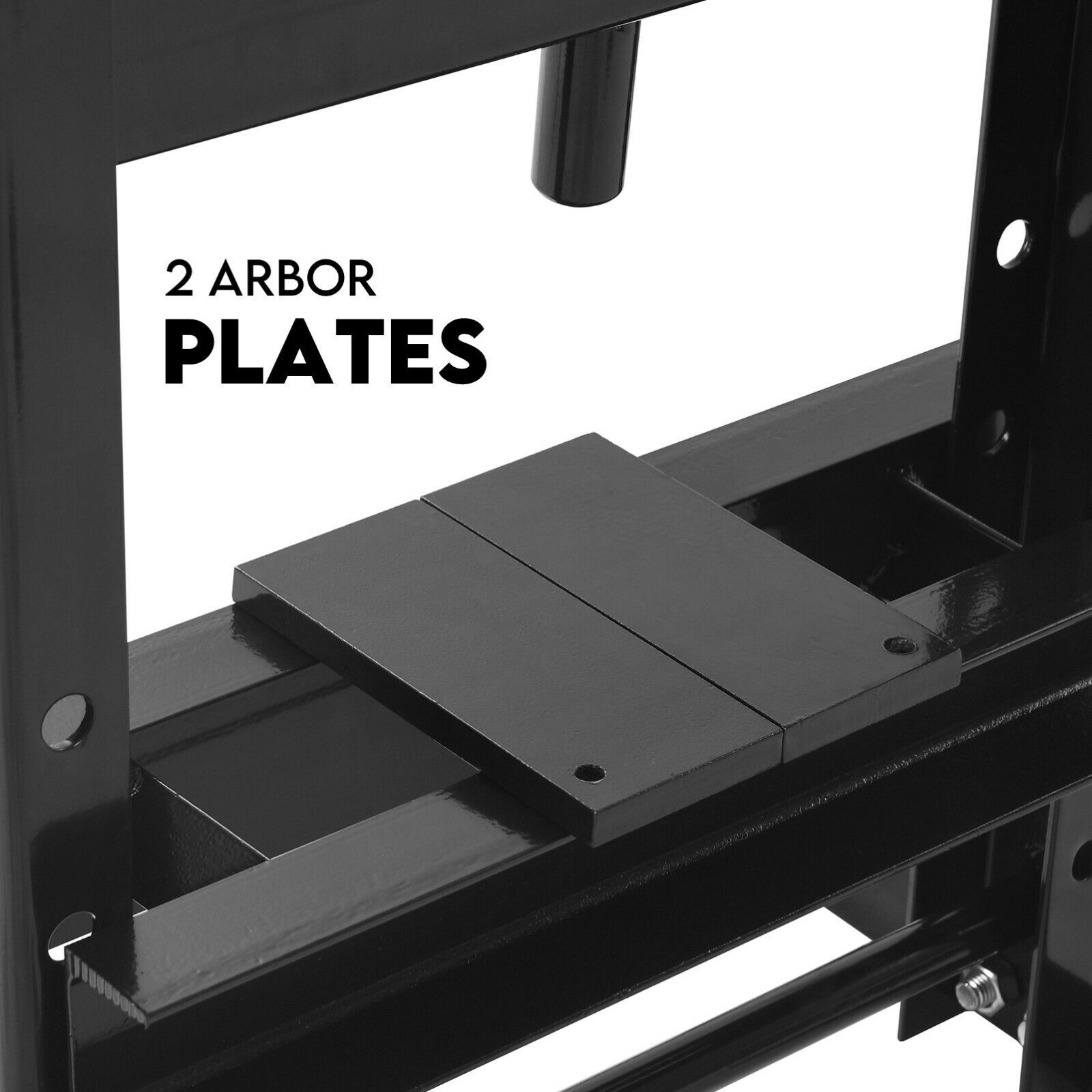

2 - Arbour Plates

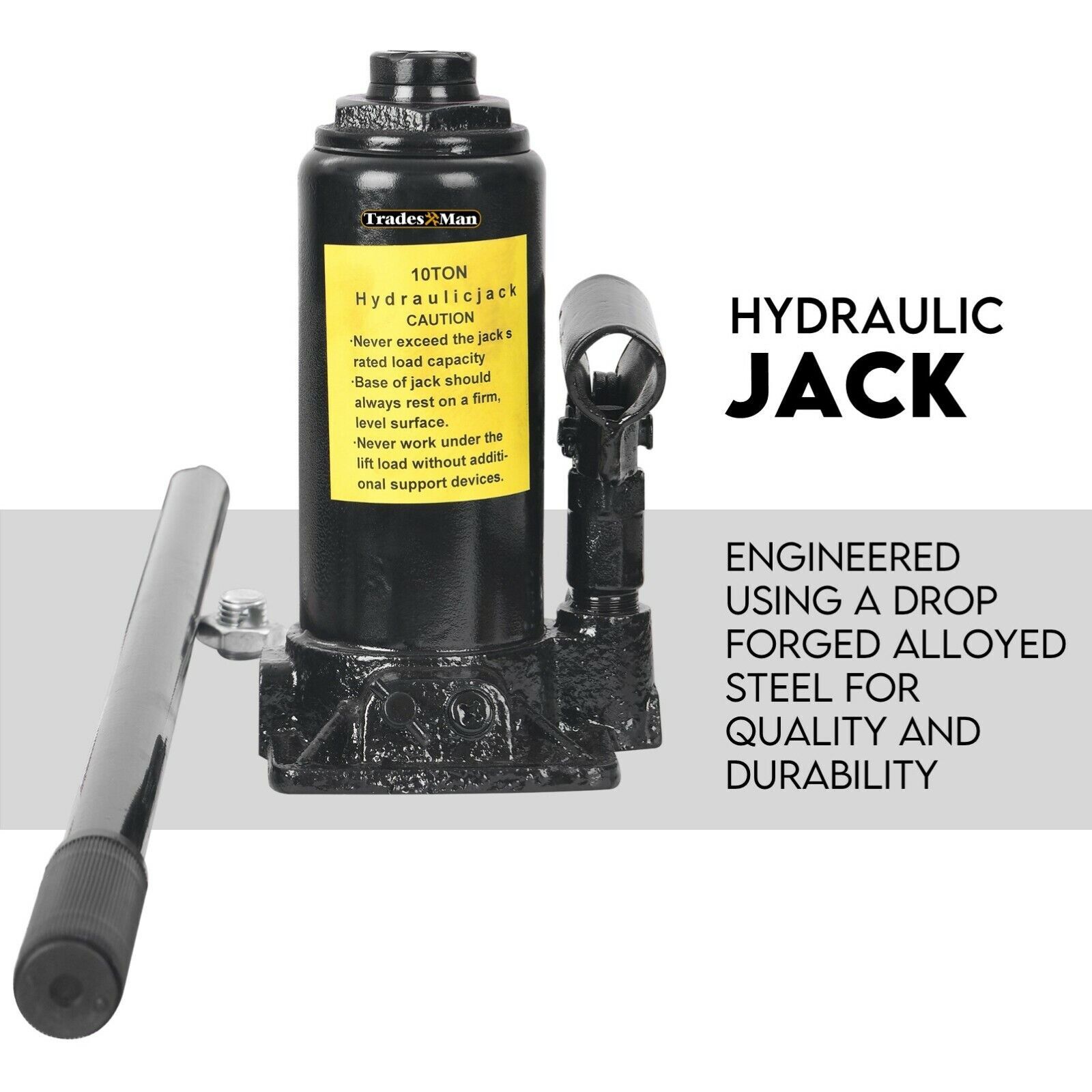

1 - Bottle Jack

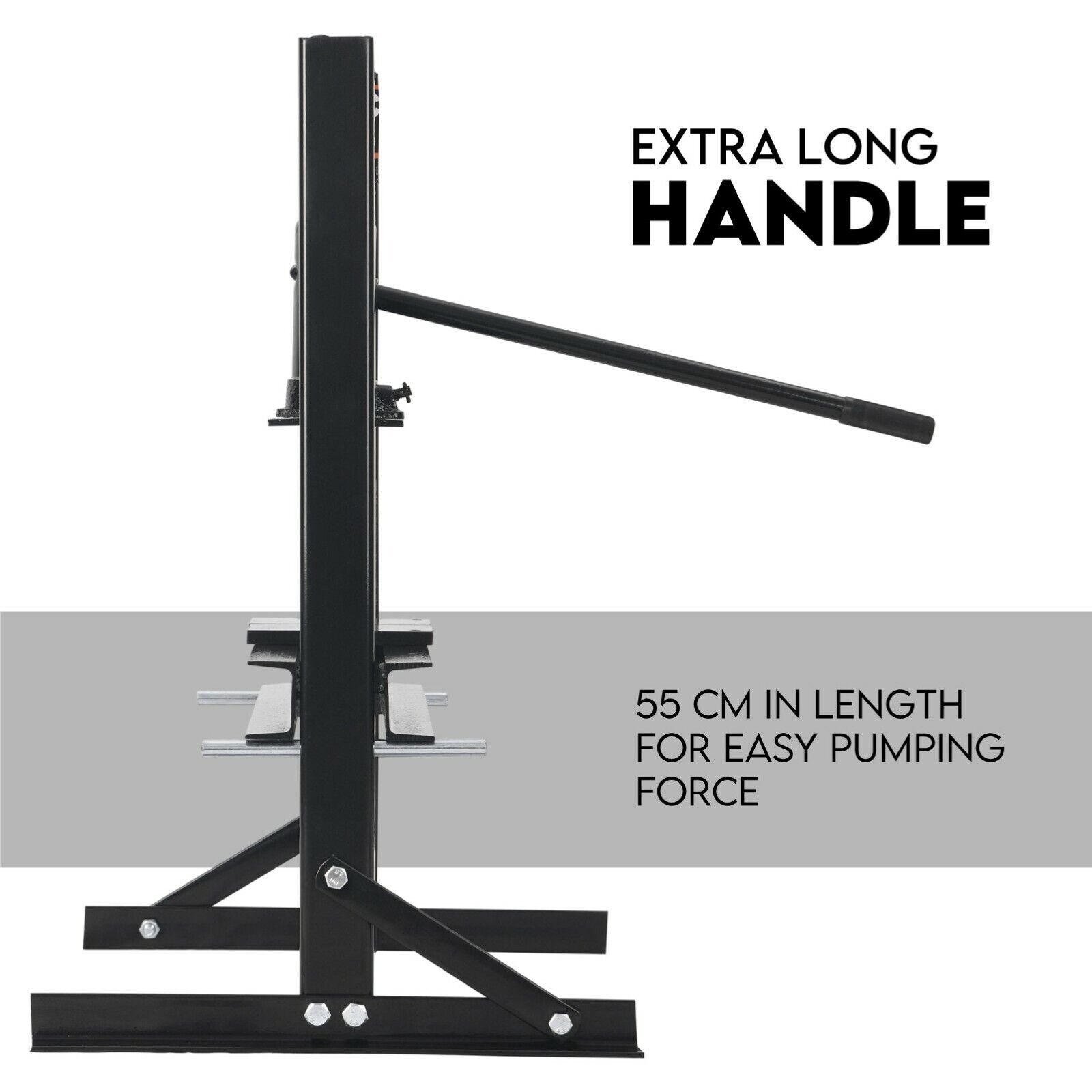

1 - Handle
2 - Springs


Barcode # 0647489156523
Shipping Weight 27.0000kg
Shipping Width 0.470m
Shipping Height 0.155m
Shipping Length 0.830m
Shipping Cubic 0.060465500m3
Unit Of Measure Carton
