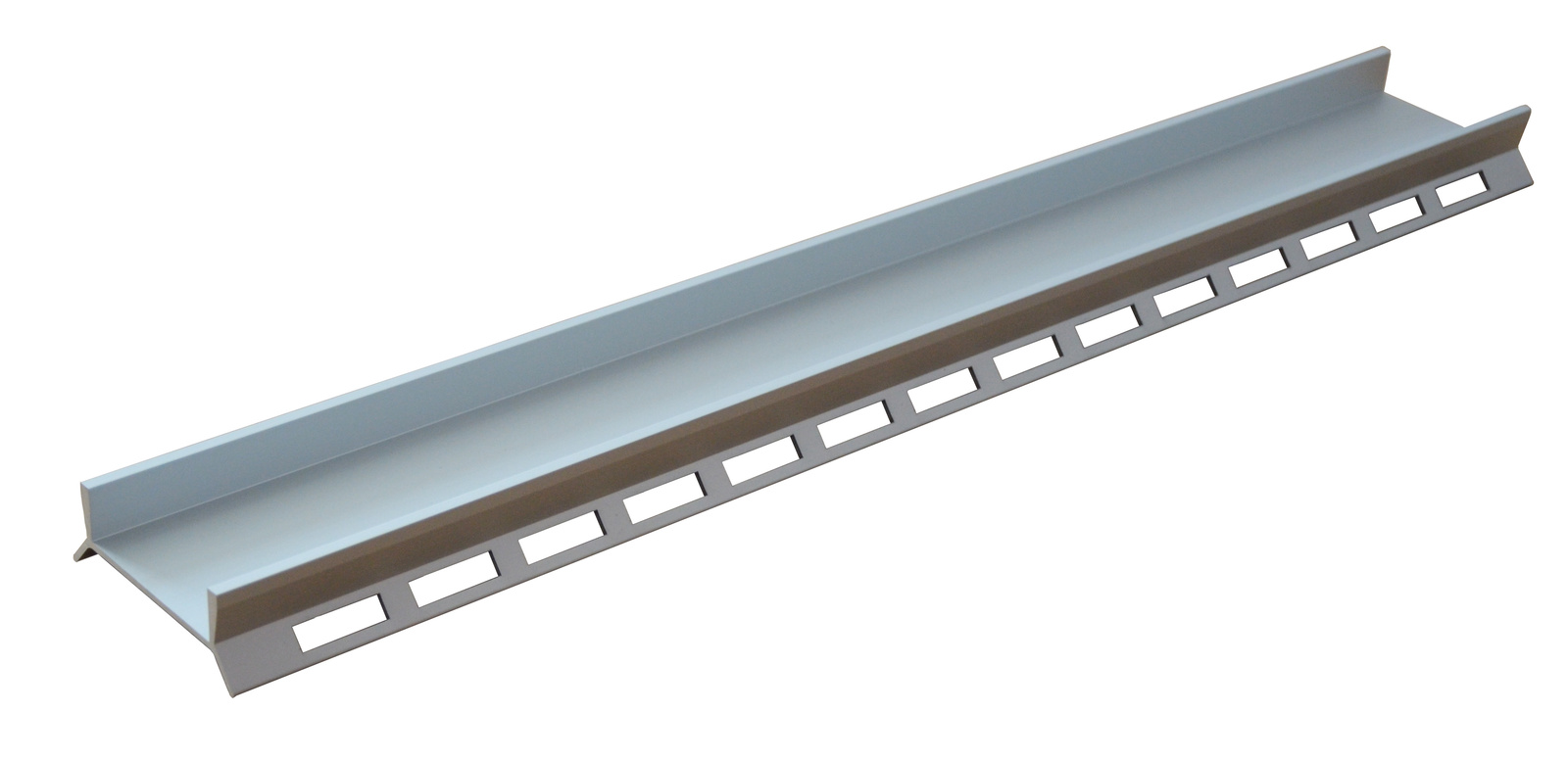

1200mm Della Francesca Floor Grate

Triple anodized aluminiumconstruction makes these "Della Francesca" floor tile insert grates a lasting solution for indoor and outdoor drainage. The versatile design allows for subtle and efficient elimination of water with a distinctive visual appeal. Durability and practicality means that these components are smart, cost effective investments for all commercial and residential projects.

Stylish living spaces can now embody function and fashion without compromising on sophistication and design.

Features and Benefits

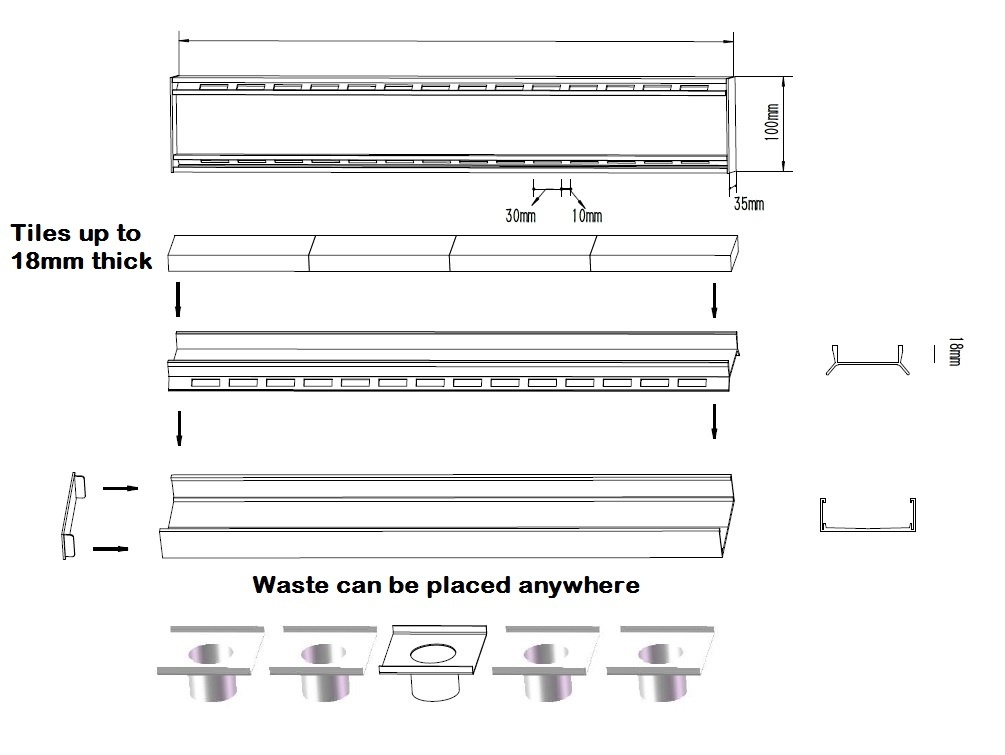

• Accommodates granite, marble and porcelain tiles in sizes up to 18mm.

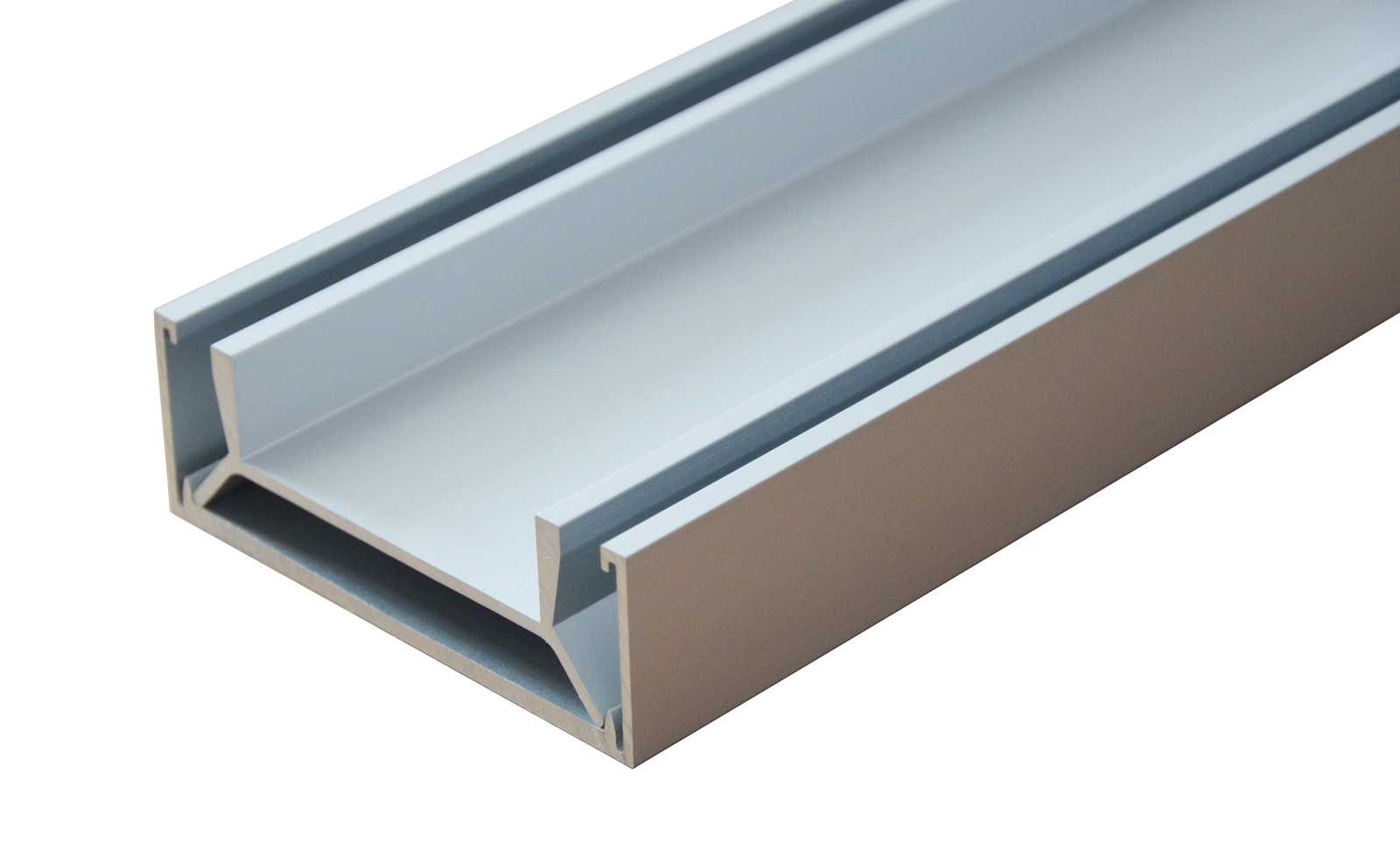

• Triple anodized aluminium construction
• Drainage hole is versatile, and can be positioned anywhere along the drainage tray.
• Workable material allows for easy cutting to any length.
• Welding is not required.
• Secures into place with silicone.

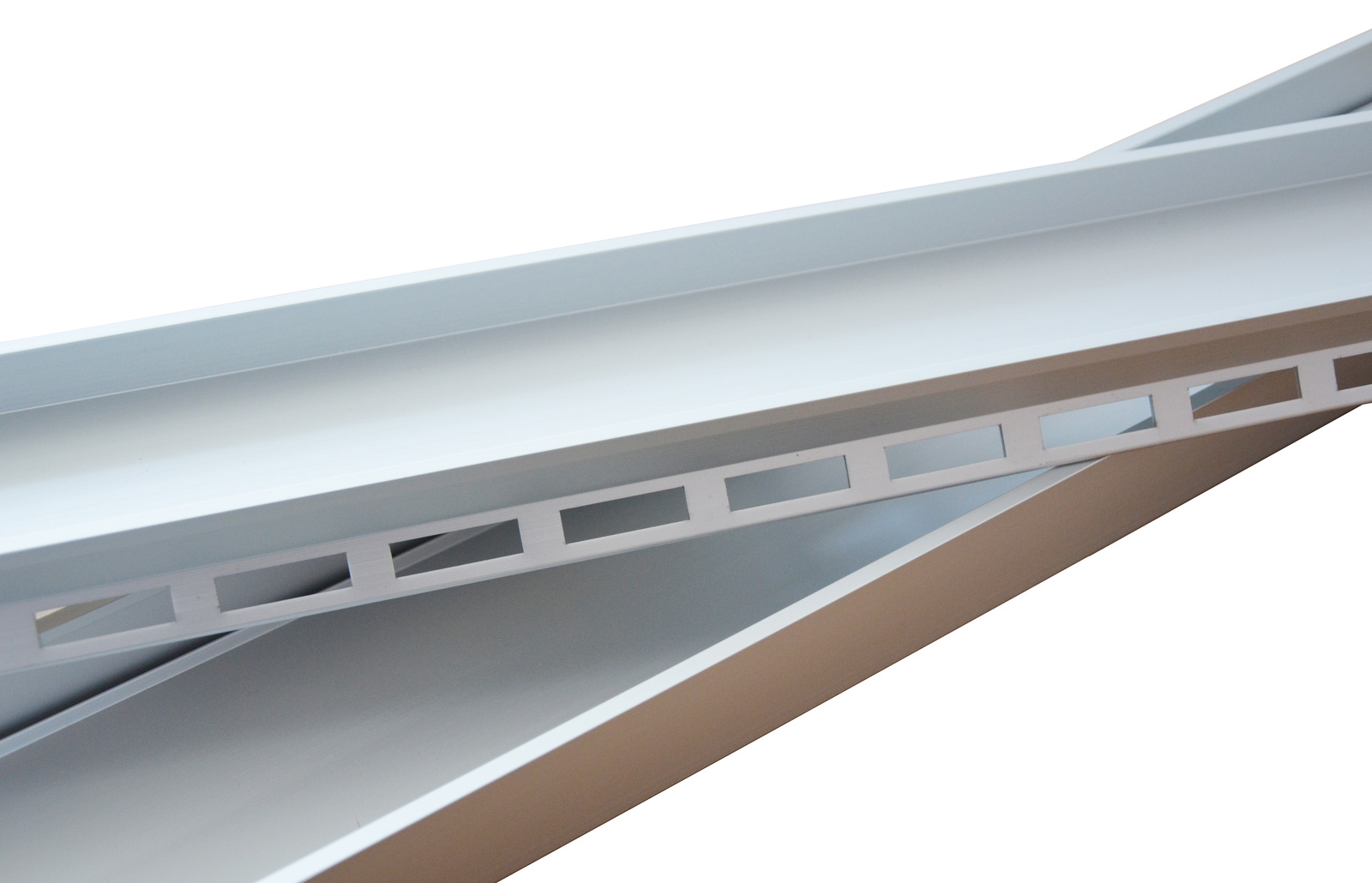

• Practical cleaning system allows for easy roll out.
• Does not rust.
• Customisable for virtually all design ideas.

Package Inclusions

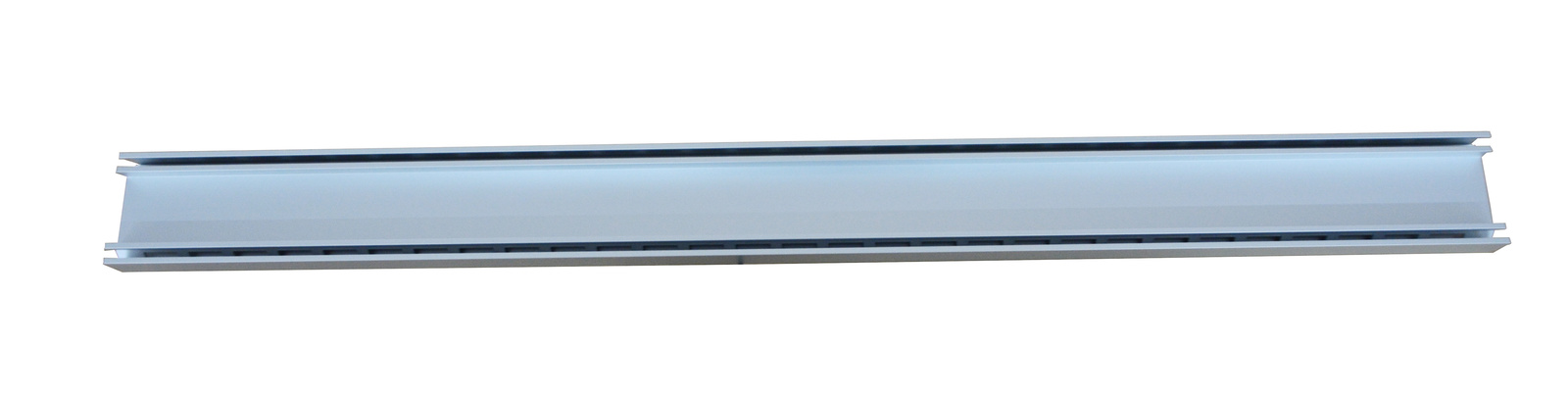

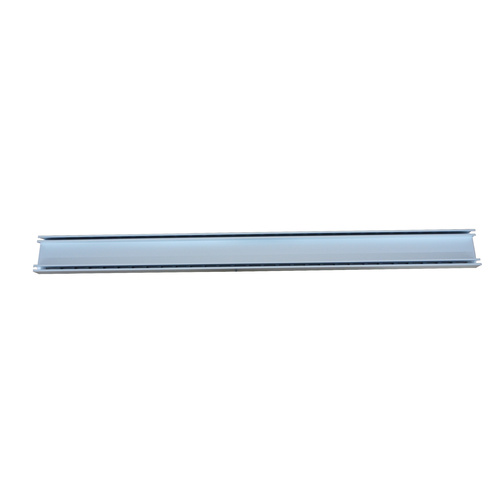

• 1200mm Della Francesca Floor Grate

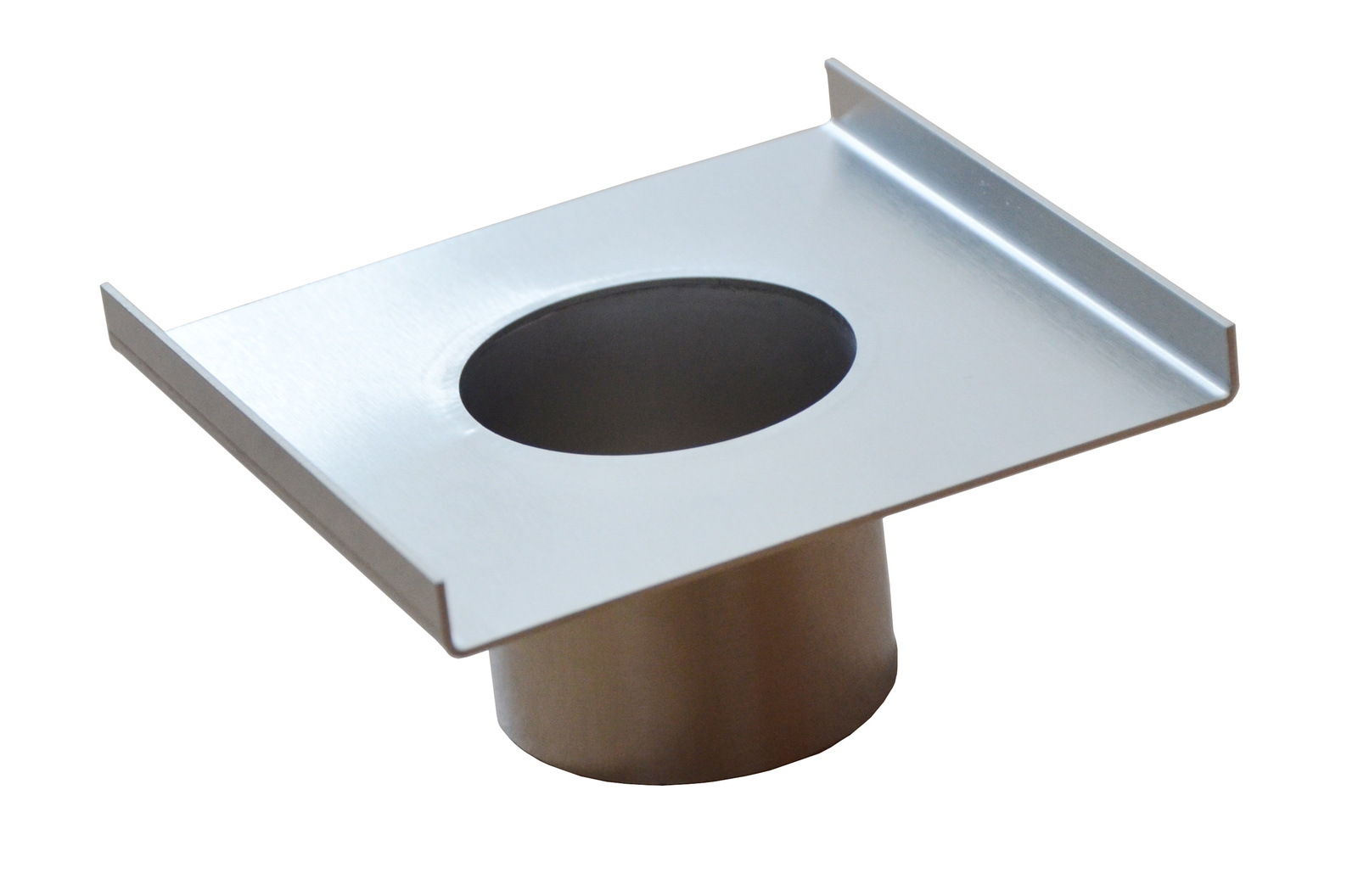

• 50mm Waste

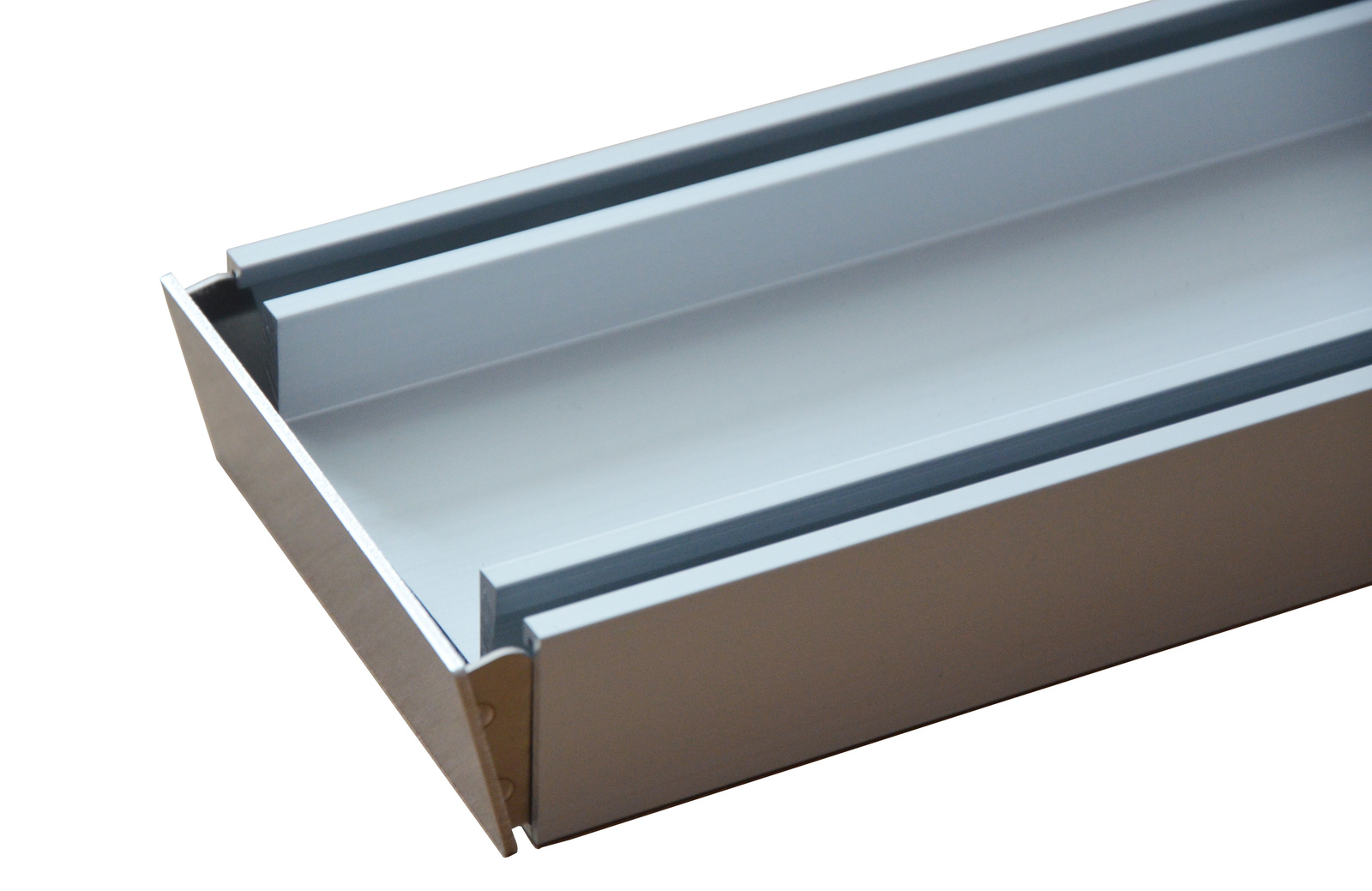

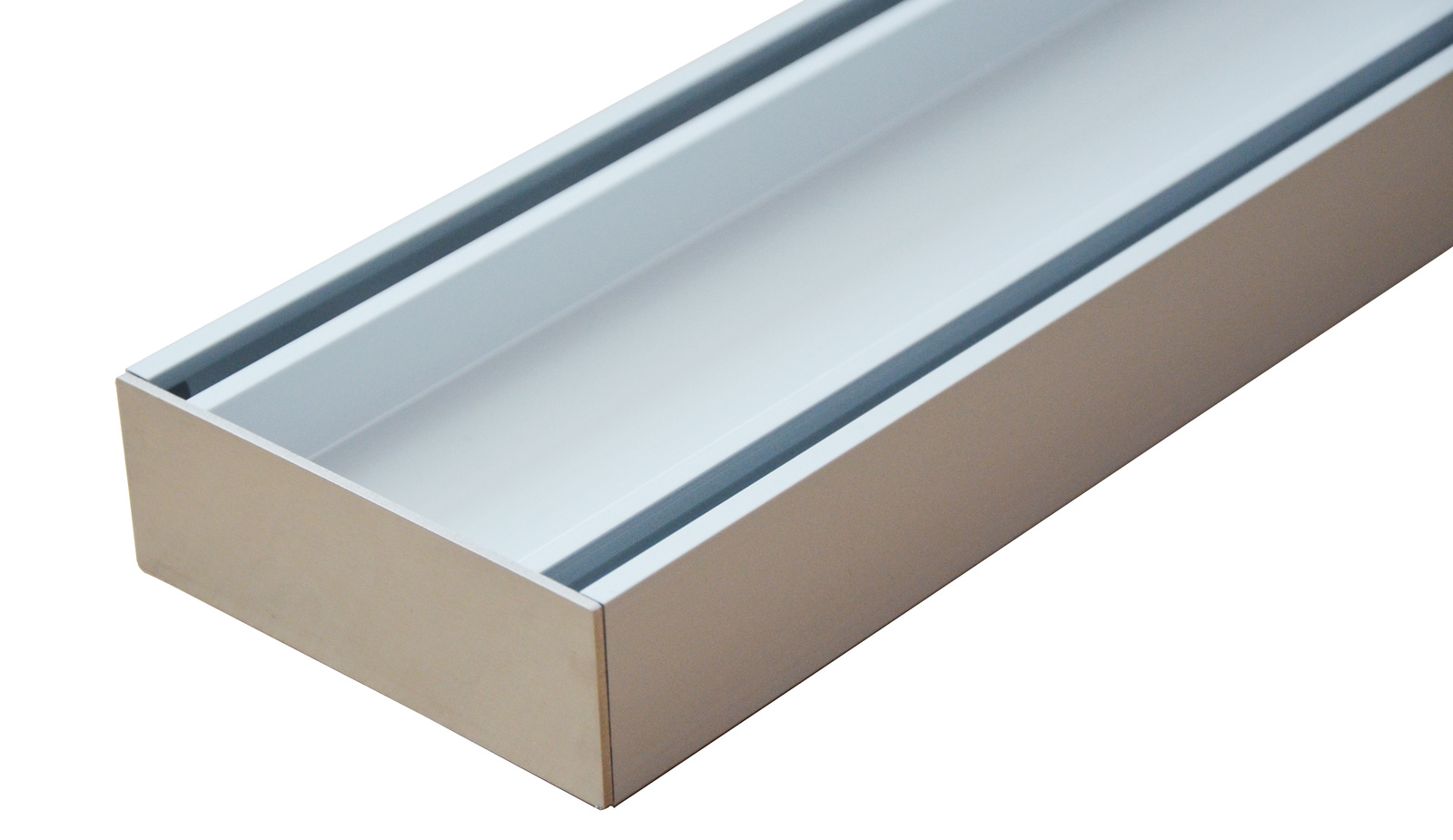

• 2 x End Caps

Instructions for Cutting

For cutting, use 100 tooth fine metal blade hacksaw, grinder or dropsaw.

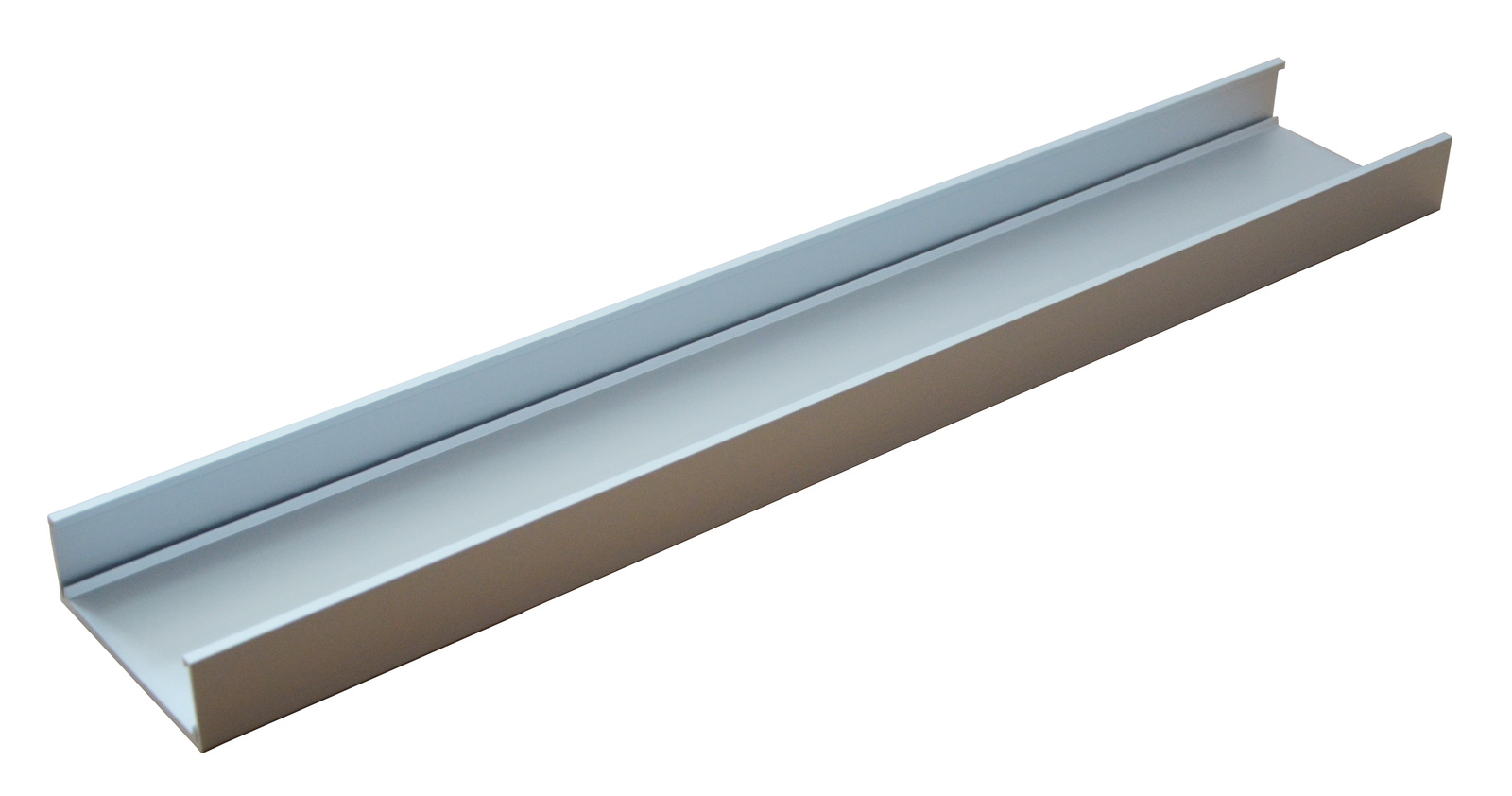

• Top tray must be cut 5mm less than bottom tray.
• In order to allow end caps to be fitted, cut bottom tray 2mm shorter than actual length of run.
• The location of the waste pipe determines the drill site of the drainage hole. Recommended bimetal hole saw drill of 40mm, 50mm or 80mm in diameter, depending on size of waste pipe.
• Drainage hole can be cut at any point along the length of the bottom tray.

Instructions for Assembly

• Use tile or silicone adhesive to secure tile into narrow channel side of top tray.
• Use a bead of silicone to the inside of the tray to secure end caps into the bottom tray.
• Secure the drill hole beneath the bottom tray by placing silicone around the lip of the pop waste.

Ideal for all outdoor and indoor spaces

• Landscaping
• Decks and Balconies
• Wet outdoor and indoor areas
• Driveways
• Gyms
• Showers
• Swimming Pools

NOTE: All of our grates and accessories have received WaterMark certification in accordance with ATS 5200.040.

NOTE: If you are purchasing multiple Della Francesca Floor Grates to join together (to meet your required length) you would need to purchase the Della Francesca JoiningPiece (sold separately)

If you would like to find out more about the Della Francesca Floor Grate, email or call us and speak to one of our friendly advisors.

Package Content:

1 x 1200mm Aluminium Rust Proof Tile Insert Strip Shower Grate Drain Indoor Outdoor
