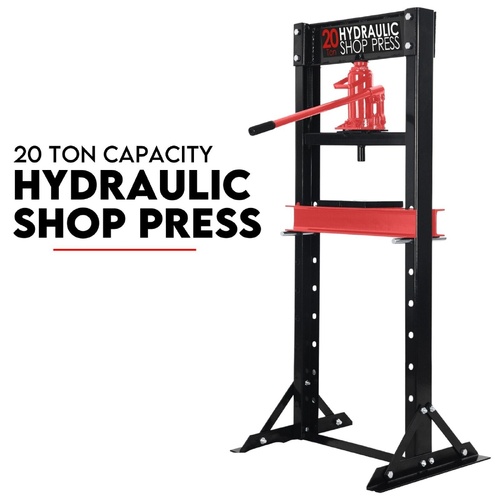

The TRADESMAN 20 Ton Hydraulic Shop Press is an excellent tool for the home mechanic or small repair shop, allowing you to bend or straighten metal easily, loosen seized parts, replace bearings, press bearings, install bearings and more.
Its bottle jack produces 20 tonnes of continuous pressing force and may be used with the manual hand pump. The dual ram return tension springs ensure smooth and safe operation and can slide along the top of the press to adjust horizontally and extends from its base.
The work press table may be placed at 8 different height adjustments, to cater to various pressing tasks.
The hydraulic cylinder assembly has been designed for durability, with refined inner cylinder walls to extend the life of the hydraulic seals. The cylinder ram is also polished and treated with high-performance seals, wear rings and dust seals. The 44,000-lbs pressing capacity provides exceptional versatility for use with all sorts of projects.


  • Continuous 20T pressing force

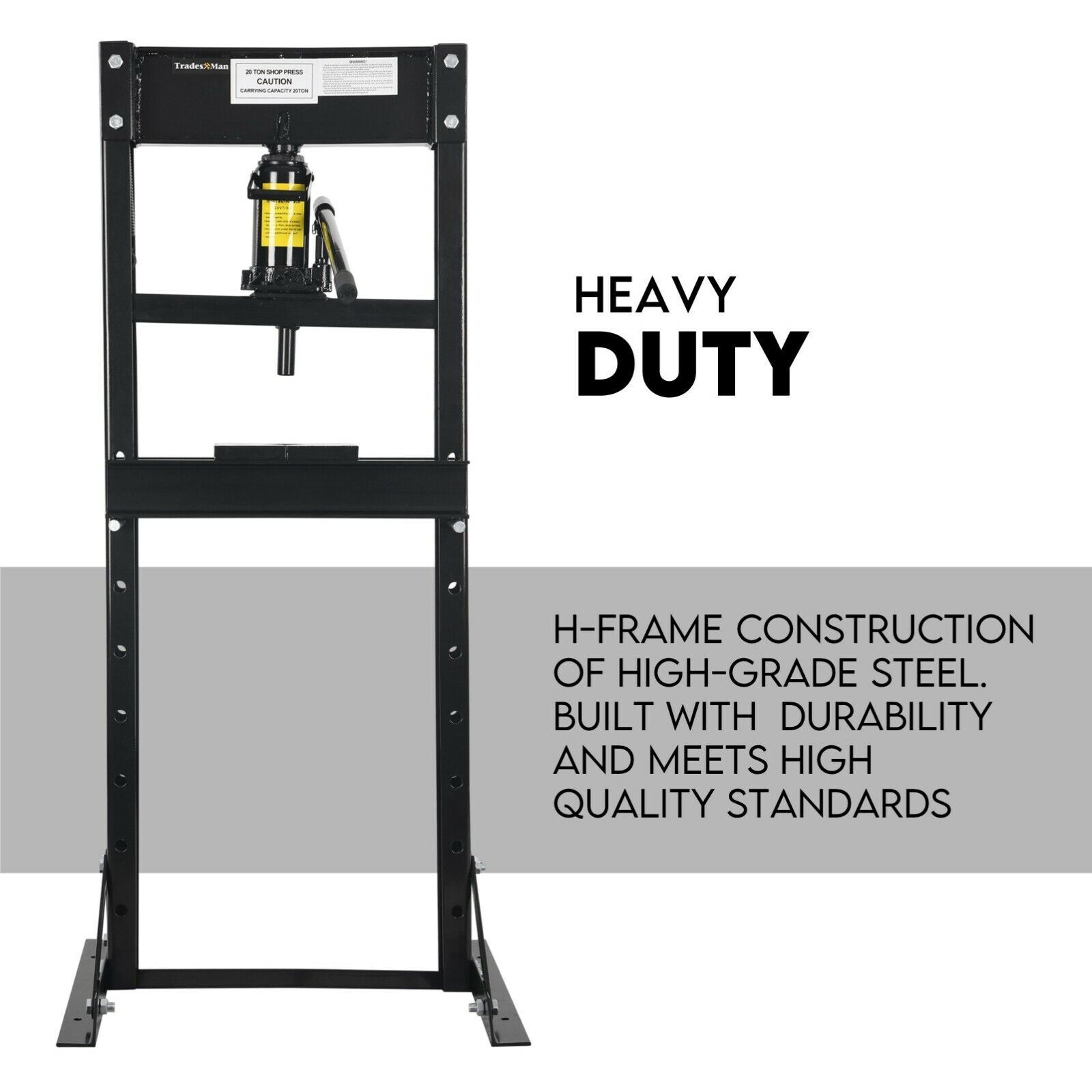

  • Heavy-duty all-steel construction - 44kg total
  • 125mm ram stroke
  • 8-position working platform
  • Dual spring-loaded ram platform


  • Pressing Force: 20T
  • Frame: Powder Coated Steel
  • Press Plates: Powder Coated Steel
  • Colour: Black
  • Working Platform: 8 position

In the Box
1 - Hydraulic Shop Press
2 - Arbor Plates
1 - Bottle Jack

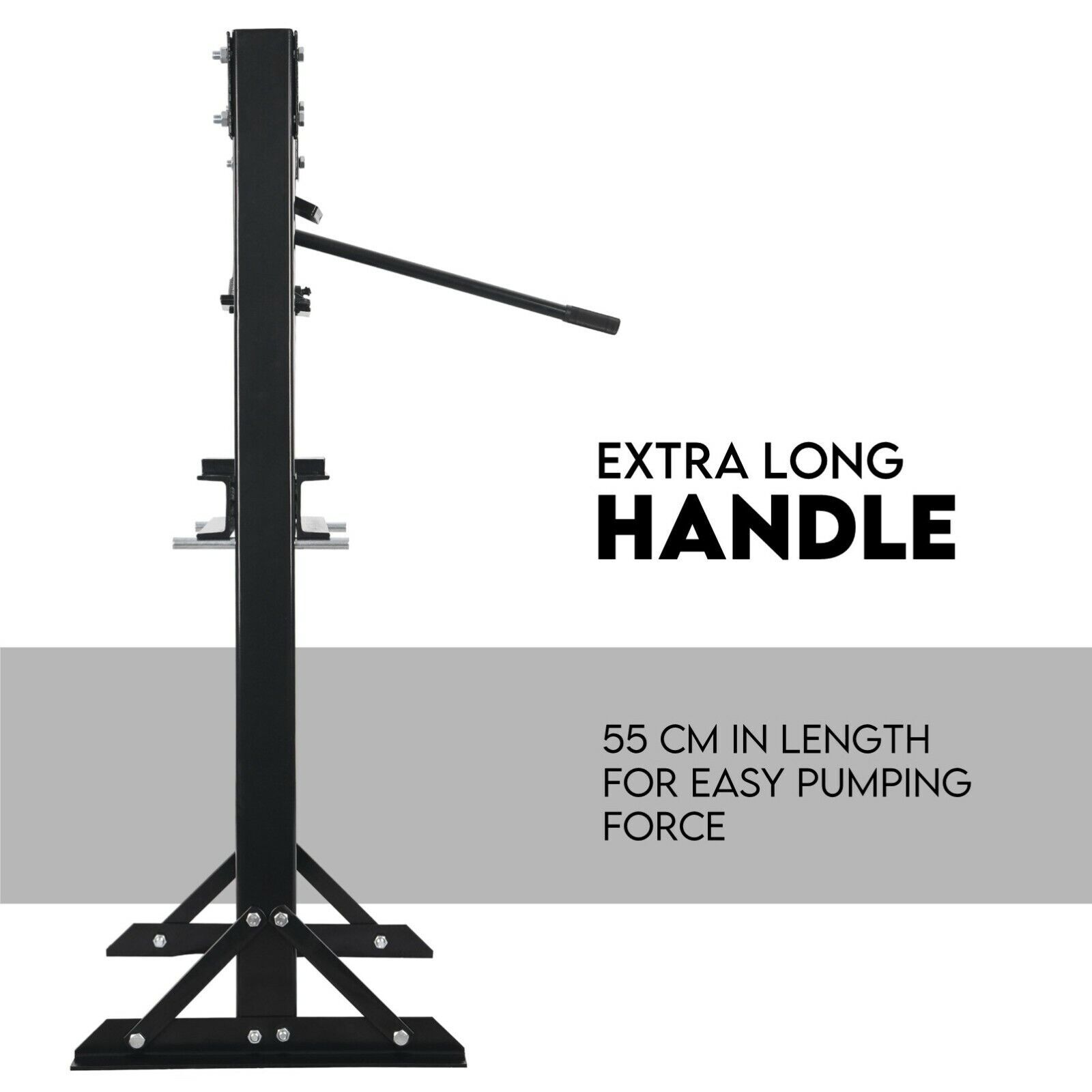

1 - Handle
2 - Springs


Barcode # 0647489156561
Shipping Weight 53.0000kg
Shipping Width 0.240m
Shipping Height 0.240m
Shipping Length 1.350m
Shipping Cubic 0.077760000m3
Unit Of Measure Carton
