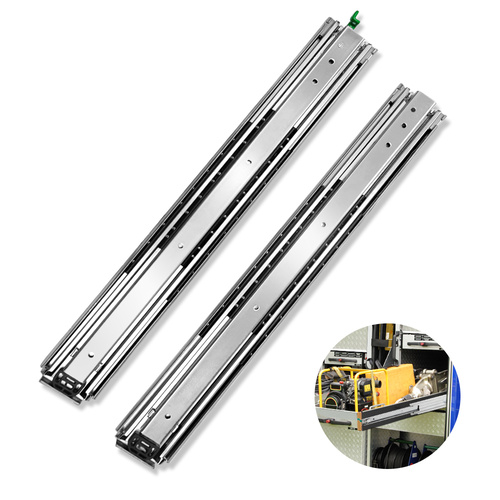

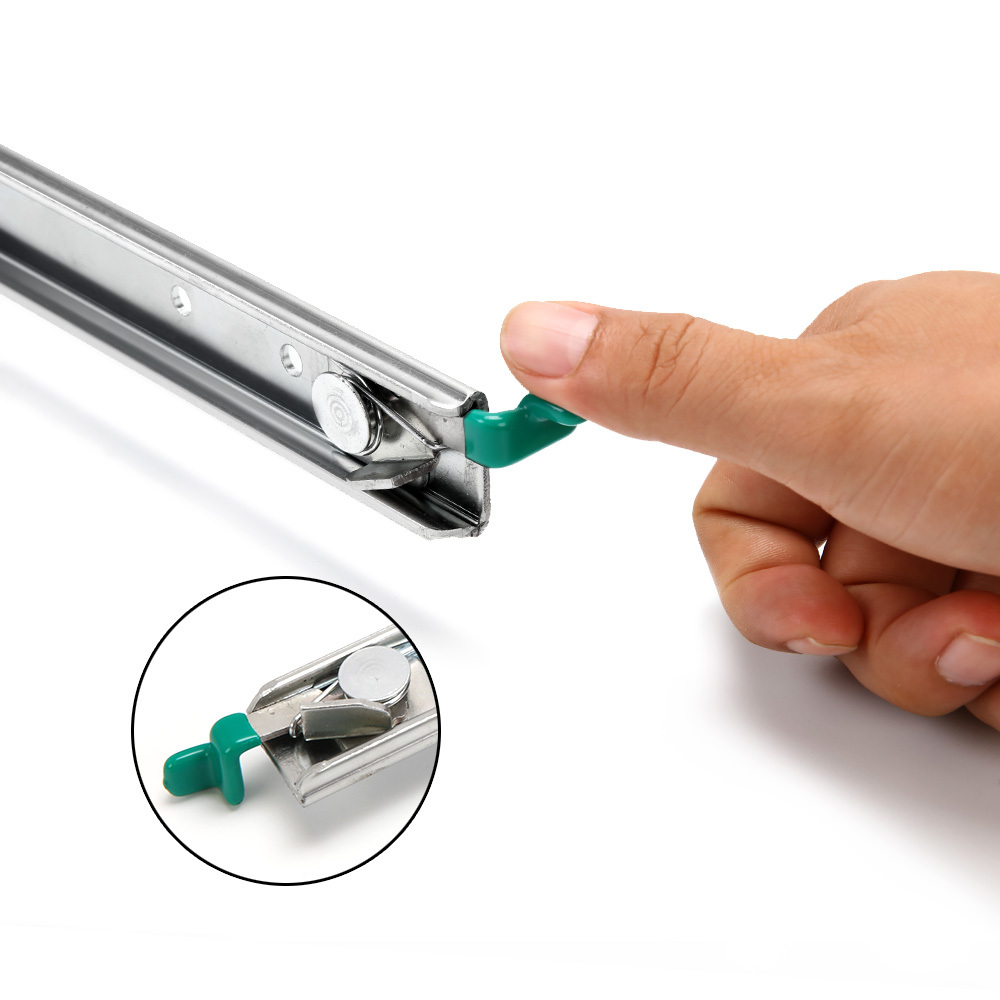

With its industrial cold rolled steel construction and reinforced zinc coating, our heavy-duty Locking Drawer Slide is made to perform precisely and smoothly. It has been rigorously tested through 50,000 cycles of opening and closing to ensure no failure with its operations. The slide comes with a sensitive locking lever and two ball-bearing cages for ultra-smooth movement and is perfect for installation with most cabinet and drawers. The drawer slide is available in seven different lengths, ranging from 508mm to 1016mm

Installation notes:

Designed for Australian applications, our drawer slides need to be installed with the following guidelines

* When marking hole positions, do not drill through the slide holes during installation. This will create metal filings which may lodge in the tracks, resulting in rough running and ultimately, failure of the slides.

* Depending on the substrate, the use of stainless steel 'flat head' hex screws with NY-lock nuts or stainless steel rivets are recommended.

* The fixings must not rub against the moving slides. This will cause failure of the slides.

* Our slides are designed to be mounted horizontally and paired side by side. Mounting them vertically one above the other or in a flat position will void the warranty.

Features
* 50,000-cycle tested
* 1.8mm/1.8mm/2.0mm thick steel for outer, middle and inner tracks
* Available in 7 lengths from 508mm to 1016mm
* Zinc-plated
* Heavy-duty with full extension
* Two ball-bearing cages
* Fitting to the side panel: screw fixing
* Fitting to drawer: screw fixing
* Simple installation

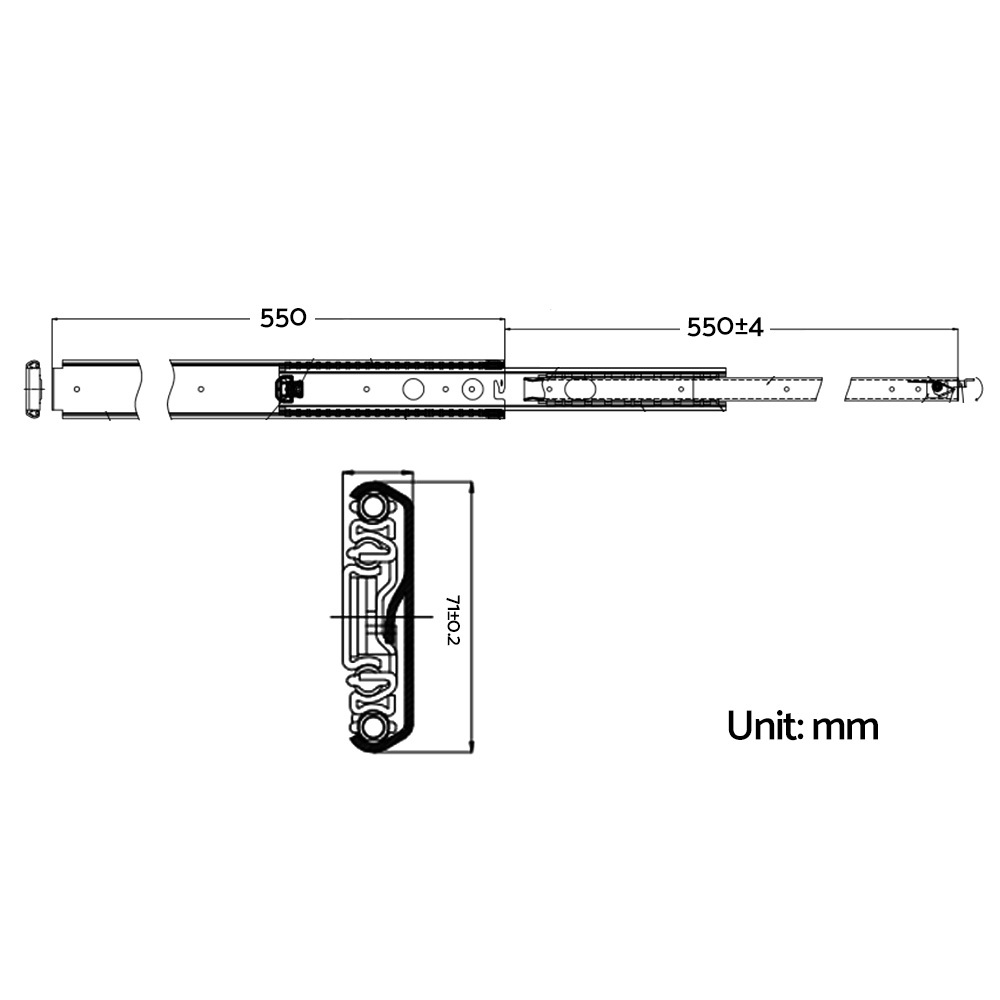

Specifications
* Load capacity: 125 kg/pair
* Lengths: 508mm/559mm/610mm/660mm/711mm/762mm/813mm/914mm/1016mm
* Width: 71mm
* Thickness: 19.5mm
* Material thickness: 1.8mm x 1.8mm x 2.0mm (Outer, middle, inner track)

Package Content
1 pair x Heavy duty drawer slides

Please Note: due to limitations by our courier partners, some postal codes may be exempt from free shipping or cannot be delivered to. The extra shipping fee will be requested after your order placed if the address can be delivered with extra shipping fee. We recommend you to message us and check if free shipping applies if your address is in rural area.

(DS-LK-125-559-NI)

SKU DS-LK-125-559-NI
Shipping Width 0.071m
Shipping Height 0.019m
Shipping Length 0.550m
Shipping Cubic 0.000742000m3
Unit Of Measure Each
