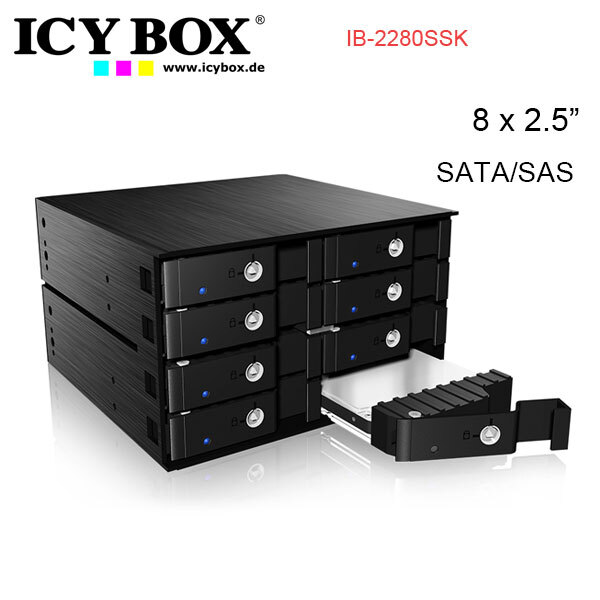

HDDs in the 2.5" form factor are getting more and more popular as their storage capacity is growing. It is a logical consequence to employ them in servers. That's why ICY BOX offers a backplane that fits into 2x 5.25" unit bays and holds 8x 2.5" SATA/SAS HDDs or SSDs. The height of the HDDs may even be 15 mm, for greatest storage capacity.
This ICY BOX works reliably even with huge amounts of data being transfered. That's a great recommendation for the hard duty in RAID systems. Accordingly demanding is the layout of the cooling. While the aluminium casing cools a 70mm fan works silent and reliable. Everything is as solid and safe as you might know it from the ICY BOX backplanes for the "big ones".

Features:

For 8x 2.5" SATA/SAS HDD/SSD in 2x 5.25" bay

Supports SAS/SATA III 6 Gbit/s

HDD height up to 15 mm

Robust industrial design

Full aluminum/metal

8x HDD trays with Key Lock

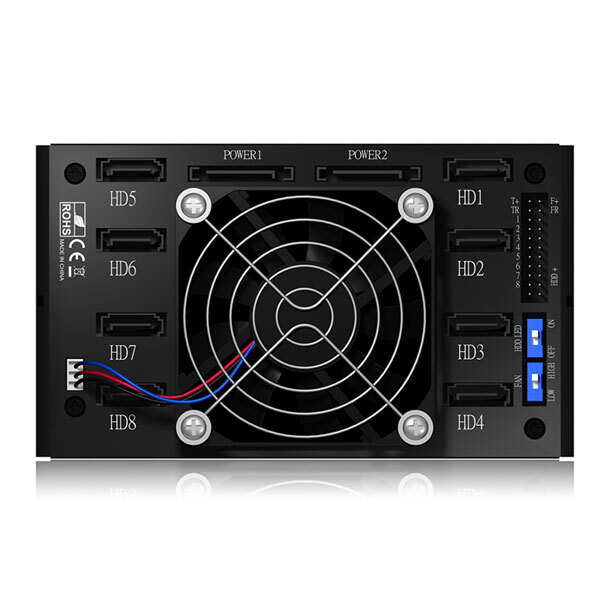

Ø 7 cm fan (2400/3000 rpm)

Trayless and easy installation

Hot Swap

Alarm for overheating and fan failure

Anti-vibration-technology

Specifications:

Model: IB-2280SSK

Brand: ICY BOX

Material: Aluminium/Metal

Colour: Black

HDD size (Zoll): 2.5

HDD interface: 8x 2.5" SAS/SATA I/II/II

HDD capacity: Unlimited

HotSwap:Yes

Plug & Play:Yes

Transfer rate:Up to 6 Gbit/s

LED:Power, HDD Access, Fan status, Temperature

Operating system:OS Independent

Package contents:

1x ICY BOX IB-2280SSK - Backplane for 8x 2.5" SATA/SAS HDD and SSD
