Features:
- Specification compliance: SFX12V v3.1
- Pentium 4 ready with P4 connectors
- Forward converter circuit
- High efficiency and reliability
- Low ripple & noise
- Super low noise fan control
- Short circuit protection on all outputs
- Over voltage protection
- Over power protection
- 100% hi-pot test
- 100% burn in, high temperature cycled on/off

Dimension: L130 x W125 x H64mm (5.1 x 4.9 x 2.5)

Connectors:

Main Power (24/20P) x 1

ATX12V (4P) x 1

Peripherals: SATA, HDD, FDD

Electrical Specifications:
- Input frequency: 50/60 Hz
- Inrush current, cold start: 100A max.
- Hold up time, full load: 16ms. typical
- Efficiency, at normal input voltage: > 82%
- Dielectric withstand, input to frame/ground: 1800VAC, 1sec
- Dielectric withstand, input to : 1800VAC, 1sec

Line regulation: +/-1% typical
- Load regulation: +/-5% typical
- Cross regulation: +/-5% typical
- Ripple / noise: 1%
- MTBF, full load: >100K hours (Excluding the DC fan)
- Power Factor Correction: Active PFC 99% typical
Safety:CUL, TUV, CB, CCC
EMC: CE, FCC

Package contents:

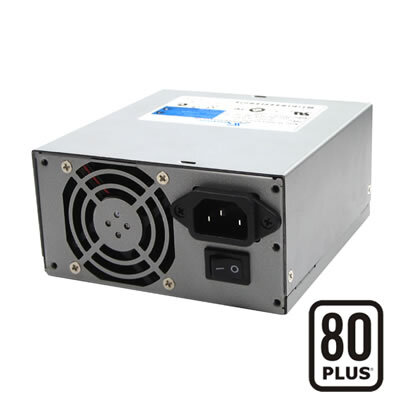

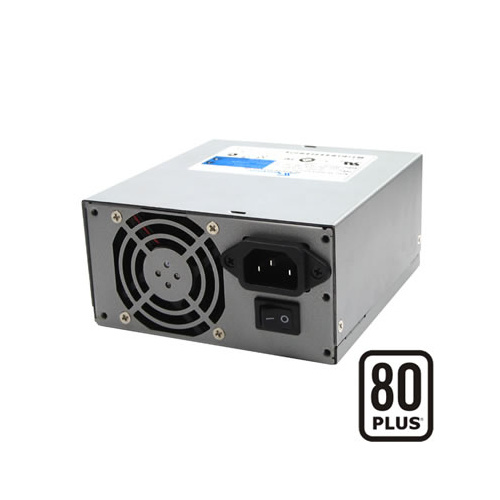

1x Seasonic SS-350SFE 350W SFX Power Supply
