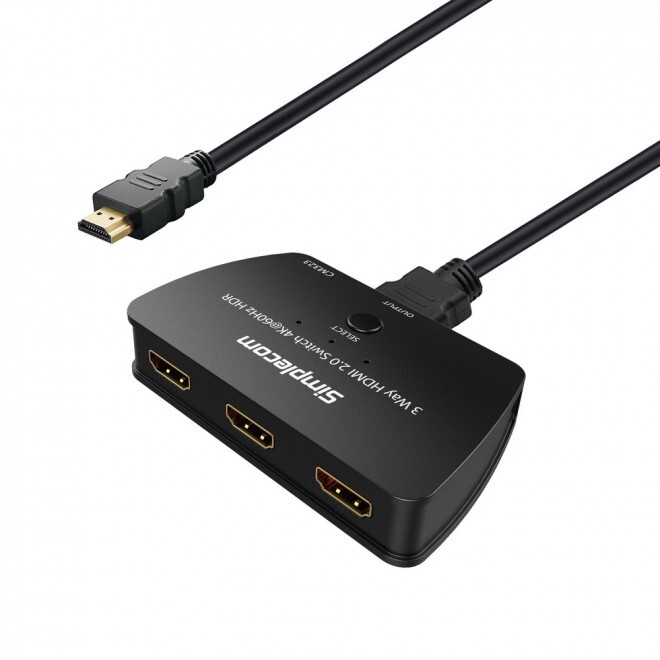

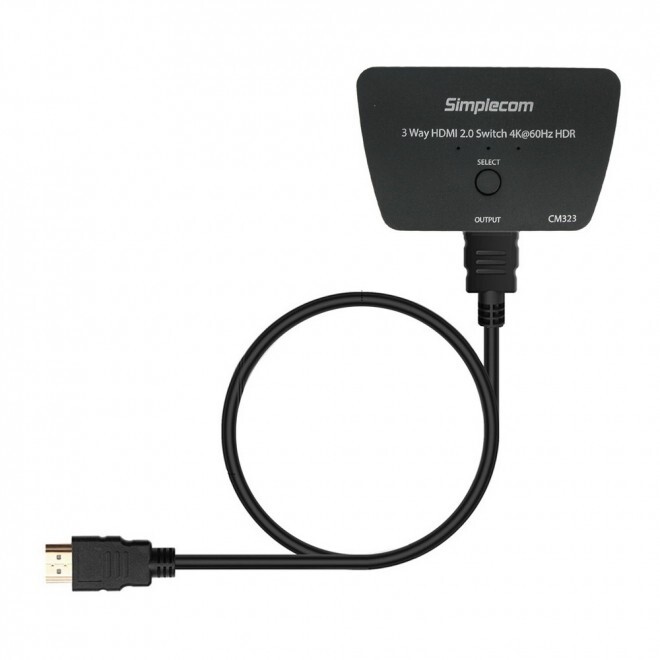

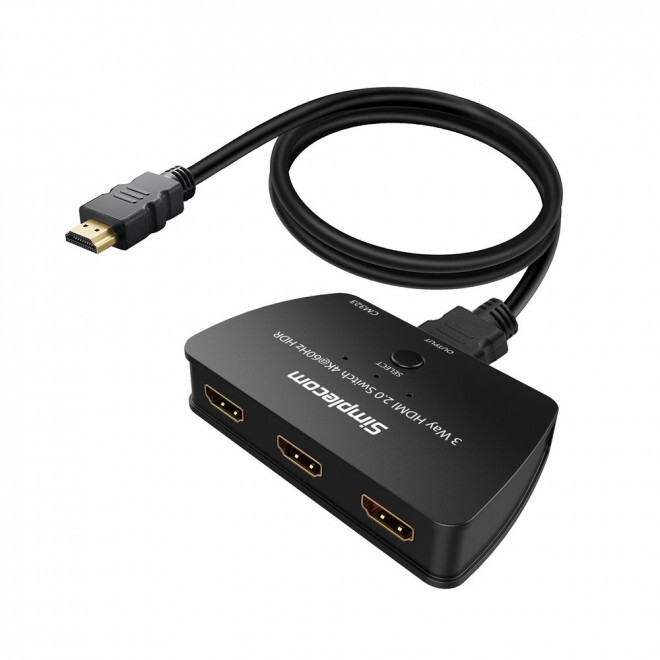

Simplecom CM323 3 Way HDMI 2.0 Switch 3 In 1 Out Splitter HDCP 2.2 4K @60Hz UHD HDR

CM323 is a 3 Way HDMI 2.0 4K switch for your latest gaming or home theatre setup. It widely compatible with most HDMI devices and supports HDMI 2.0 and HDCP 2.2, ideal for latest online streaming box and game console with 4K UHD HDMI output. This HDMI 2.0 4K switch is also backward compatible with previous HDMI revisions with 1080p / 720p video resolution devices.

Easy plug & play operation simply plug in the HDMI input sources into the input connections and the output connection to your TV or projector. It will automatically switch to the currently active input source if there is only one active input. If there are multiple active inputs, you can select the input by press the select button on the switch.

Features:

Widely compatible HDMI devices with HDMI 2.0 and HDCP 2.2 support

Supported Video Resolutions up to 4Kx2K @ 60Hz

Support HDR and 4:4:4 RGB output

Backward compatible with previous HDMI revisions

Supports highest bandwidth up to 18Gpbs. Perfect for PS4 Pro, Xbox One S, Chromecast Ultra, Direct TV, Roku Premiere+, Fire TV, PCs etc.

Supports Auto Switching to active input source port*

Plug-and-Play, Powered by USB

Specifications:

HDMI version: HDMI 2.0 (backward compatible with previous HDMI revisions)

HDCP version: HDCP 2.2 (backward compatible with previous HDCP revisions)

Video Amplifier Bandwidth: 18Gpbs/250MHZ

Frequency: 25MHZ-165MHZ

Support Video Format: Ultra HD 4K/2K (3840X2160) @ 60Hz / 1080p / 1080i / 720p / 576p / 480p / 576i / 480i / 3D Video

Support Video Color: 12 bit Deep Color Per Channel

Support Audio Format: Dolby Digital, DTS-HD, Dolby-TrueHD, DTS, LPCM

Power Input: USB 5V

Operating Temperature: 0°C to 70°C

Operating Humidity: 10% to 85% RH(no condensation)

*Note: Apple TV and some online streaming box keeps its HDMI port active even in the sleep state. Hence, auto-switching may not work with them. Manual switching can still be used in this scenario.

Package Content:

1 x Simplecom CM323 3 Way HDMI 2.0 Switch 3 In 1 Out Splitter HDCP 2.2 4K @60Hz UHD HDR
