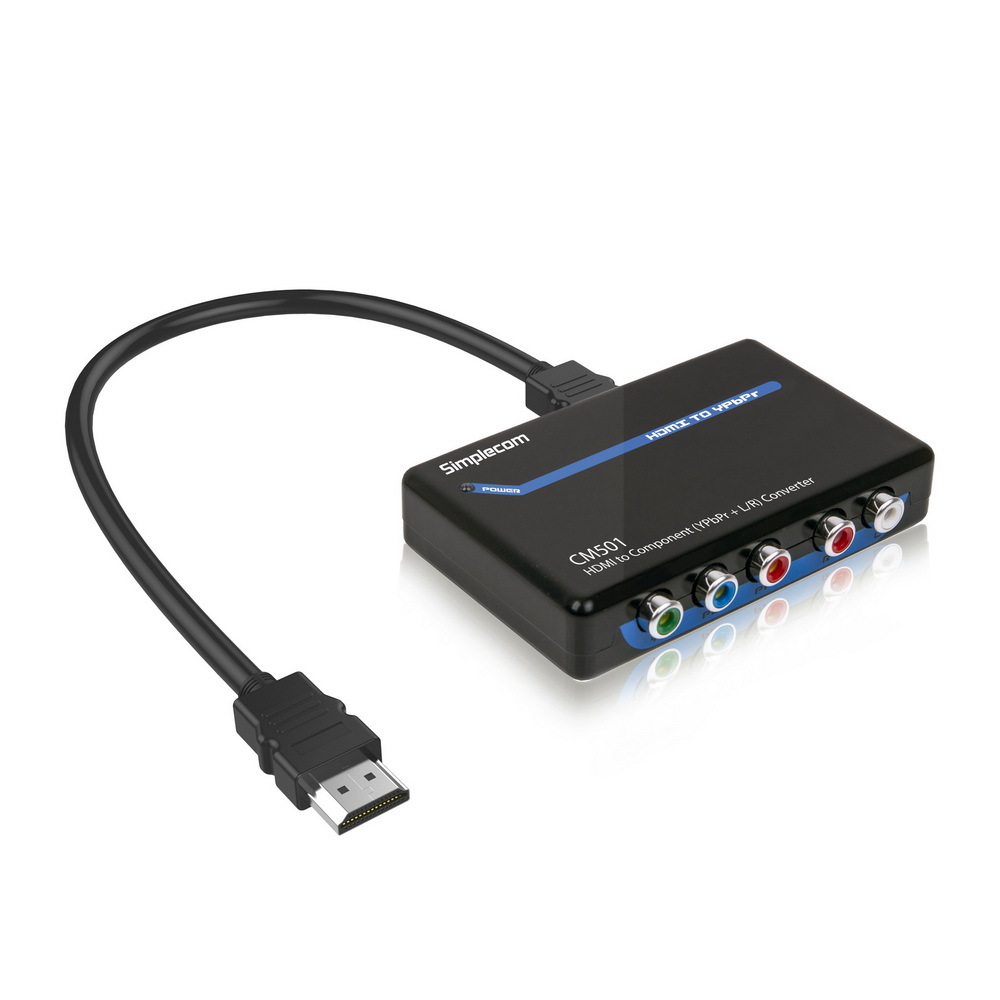

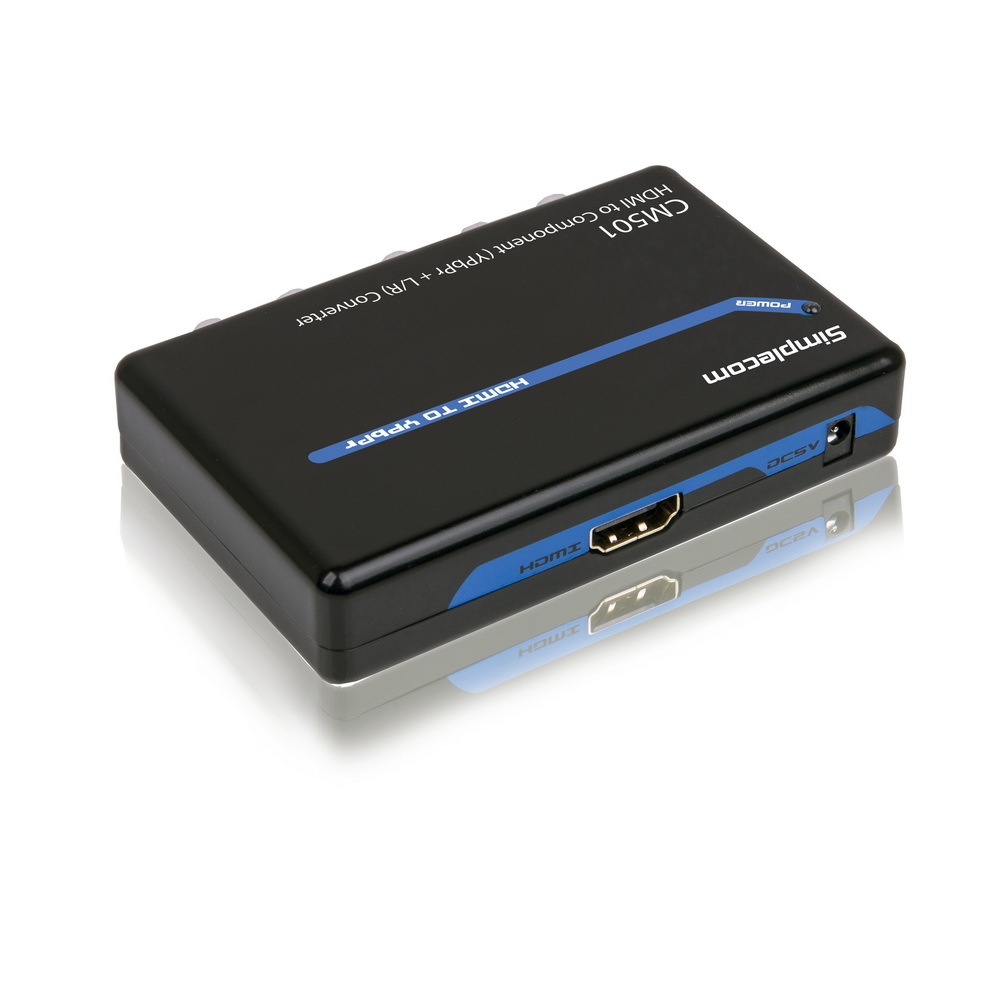

Simplecom CM501 HDMI to Component Video (YPbPr) and Audio (L/R) Converter

CM501 converts HDMI to Component Video (YPbPr) and stereo audio. It allows you to enjoy your high definition movies and games on the older component TV's or projectors that don't have an HDMI input. Also, you can easily connect your speaker system with separate component Video and Audio outputs.


Ease to Use, small size, Installs in seconds

Support most HDMI video output resolution up to 1080p

Resolution pass-through, converting video formats only, no conversion of video resolutions

Audio format support 2 channel LPCM

Compliant with HDMI 1.3 and HDCP 1.2

Supports 225MHz/2.25Gbps per channel bandwidth for HDMI input

Powered by USB, USB Power Cable and Wall Changer included


Input Signal: HDMI

Output Signal: Component + Stereo Audio (YPbPr + L/R)

Supported HDMI resolution: 480p@60Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz,1080p@50/60Hz

Supported Component Video resolution: 480p@60Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz,1080p@50/60Hz

Video Bandwidth: 2.25Gbps/225MHz

Vertical Frequency Range: 50/60Hz

Operating Humidity: 10% to 85% RH

Storage Humidity: 5% to 90% RH

Power Supply: 5V DC

Power Consumption(Max): 5W

Important Note

The converter doesn’t support audio decoding and only supports PCM audio signals and does NOT support Dolby, DTS, or other proprietary 5.1/7.1 surround sound signals.

Will not convert audio signal only.

Converting from HDMI to Component only, not capable of being reversed.

Package Contents

1x CM501 HDMI to Component Converter

1x HDMI Lead

1x USB Power cable

1x USB Wall Charger

1x User Manual


SKU V28-CM501
Barcode # 9350414000914
Shipping Weight 0.5000kg
Unit Of Measure Carton
