Cable Sheath Automotive Wire - 6MM

Our 6MM twin sheath automotive cable pure features a oxygen-free copper wire and reinforced PVC cover with black sheathing. The wire is waterproof, fire-retardant and can withstand extreme temperature changes without losing conductivity. It is designed to meet Australian standards and is SAA-certified.

Features:

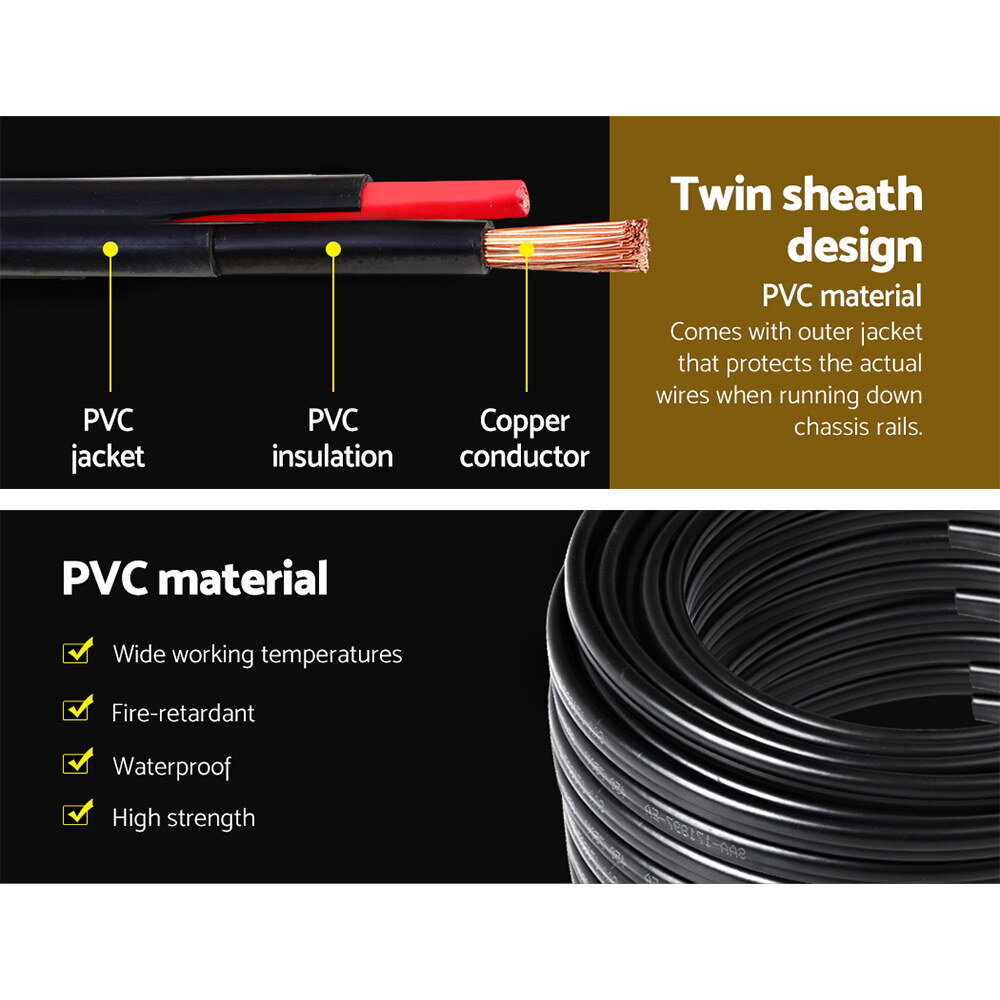

* 6MM twin sheath automotive cable
* Oxygen-free copper core conductor
* Low eccentricity
* Reinforced PVC material
* SAA-certified
* Can normally work up to 450V AC/DC

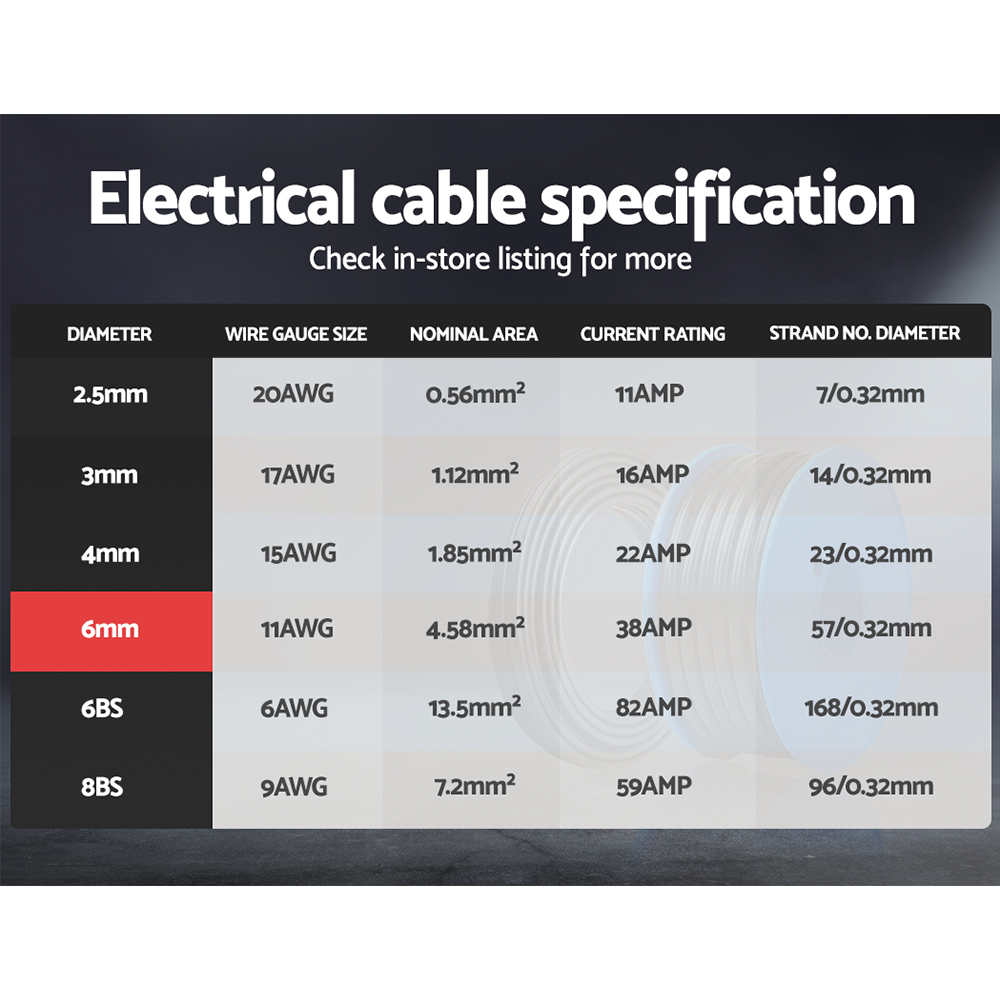

Specifications:

* Conductor: Oxygen-free plain copper wire to AS/NZ 1125
* Insulation: V90 PVC to AS/NZ 3808
* Sheath: 5V90 PVC to AS/NZ 3808
* Amp rating: 38
* No. of cores: 2
* Cable Length: 100m
* Cable diameter: 6mm
* Strand no. diameter: 57/0.32mm
* Nominal area: 4.59mm2
* Nominal O.D.: 5.7mm x 9.6mm
* Colour: Black sheathing
* Conductor resistance <4.01O/Km(20?)
* Dielectric strength(kV/sec AC):2.5/60
* Unaged acceptable tensile strength = 12.5Mpa
* Unaged acceptable ultimate elongation =130%


Package Content:

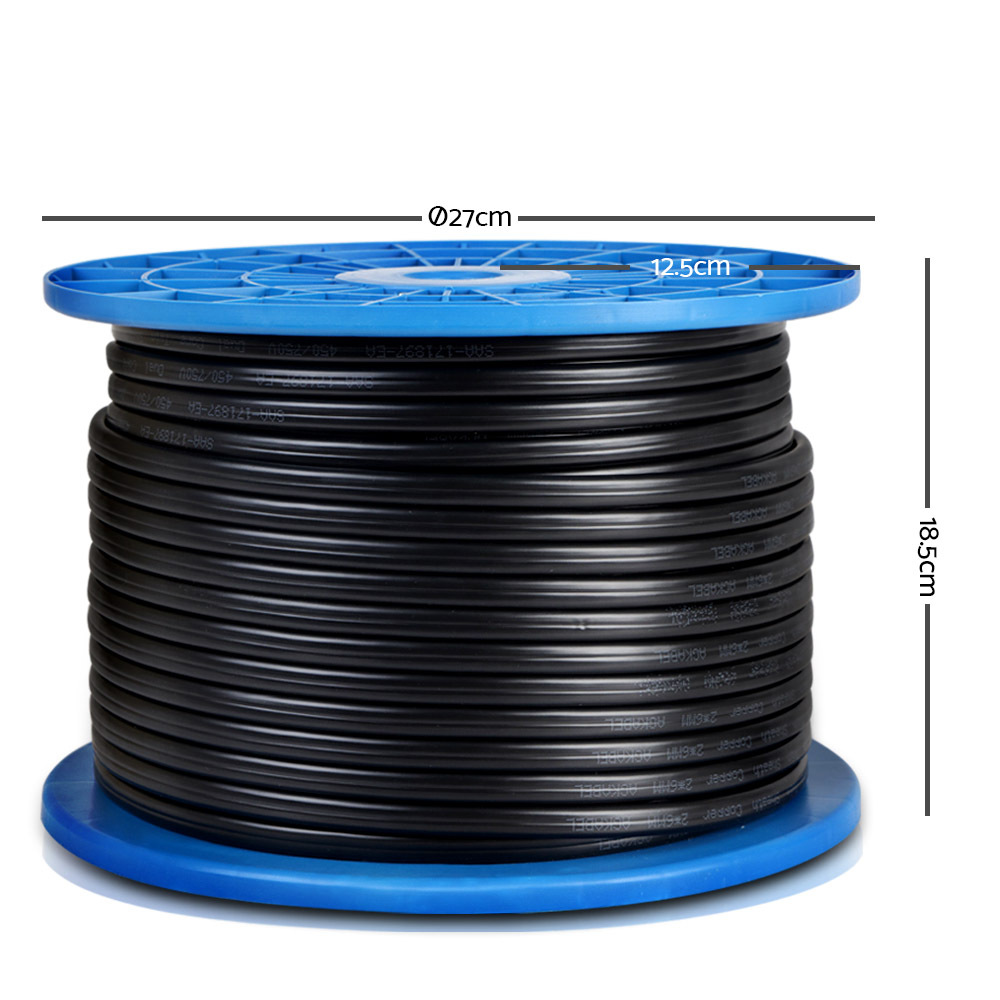

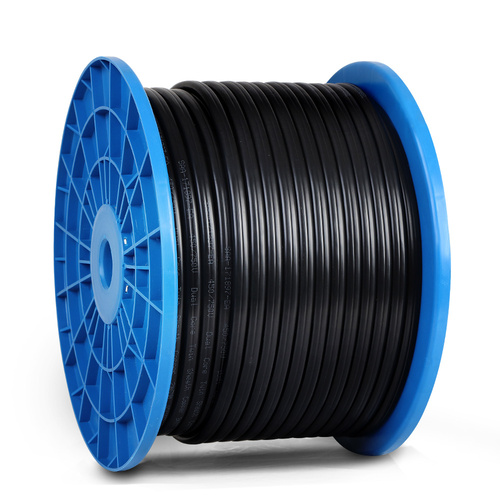

1 x Twin Core Cable
1 x Cable Spool

Please Note: due to limitations by our courier partners, some postal codes may be exempt from free shipping or cannot be delivered to. The extra shipping fee will be requested after your order placed if the address can be delivered with extra shipping fee. We recommend you to message us and check if free shipping applies if your address is in rural area.

(TWIN-CABLE-6MM-100)

SKU TWIN-CABLE-6MM-100
Shipping Width 0.300m
Shipping Height 0.210m
Shipping Length 0.300m
Shipping Cubic 0.018900000m3
Unit Of Measure Each
