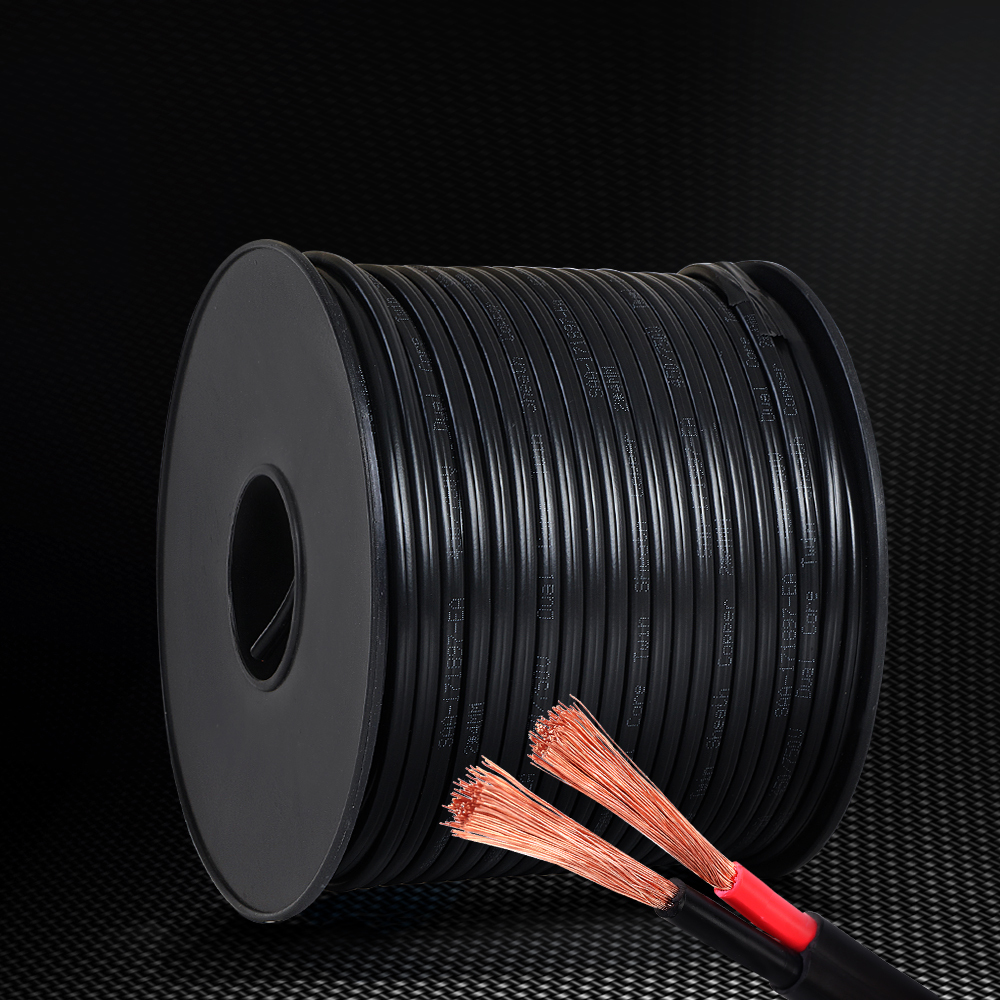

100M 4MM Twin Core Wire 2 Sheath Electrical Cable

With its twin core design, our Twin Cable Sheath Wire is one of the best in the market. Comprising pure oxygen-free copper and a highly durable and strong reinforced PVC cover with black sheathing, our twin core sheath wire can handle any application with ease and confidence. And that can make a difference with a good project and a great one. Not least. The wire is waterproof, fire-retardant and can withstand extreme temperature changes without losing any of its effective conductivity. The wire is SAA-certified and conforms to strict Australian standards.

Features
4mm twin sheath automotive cable
Oxygen-free copper core conductor
Low eccentricity
Reinforced PVC material
SAA-certified
Can normally work up to 450V AC/DC

Specifications
Conductor: Oxygen-free plain copper wire to AS/NZ 1125
Insulation: V90 PVC to AS/NZ 3808
Sheath: 5V90 PVC to AS/NZ 3808
Amp rating: 22
No. of cores: 2
Cable Length: 100m
Industry Equiv. : 4mm
Strand no. diameter: 23/0.32mm
Nominal area: 1.84mm2
Nominal O.D.: 3.8mm x 6.3mm
Colour: Black sheathing
Conductor resistance <10.1Ω/Km(20℃)
Dielectric strength(kV/sec AC):2.5/60
Unaged acceptable tensile strength ≥ 12.5Mpa
Unaged acceptable ultimate elongation ≥130%

Package Content
1 x Twin core cable
1 x Wire spool
