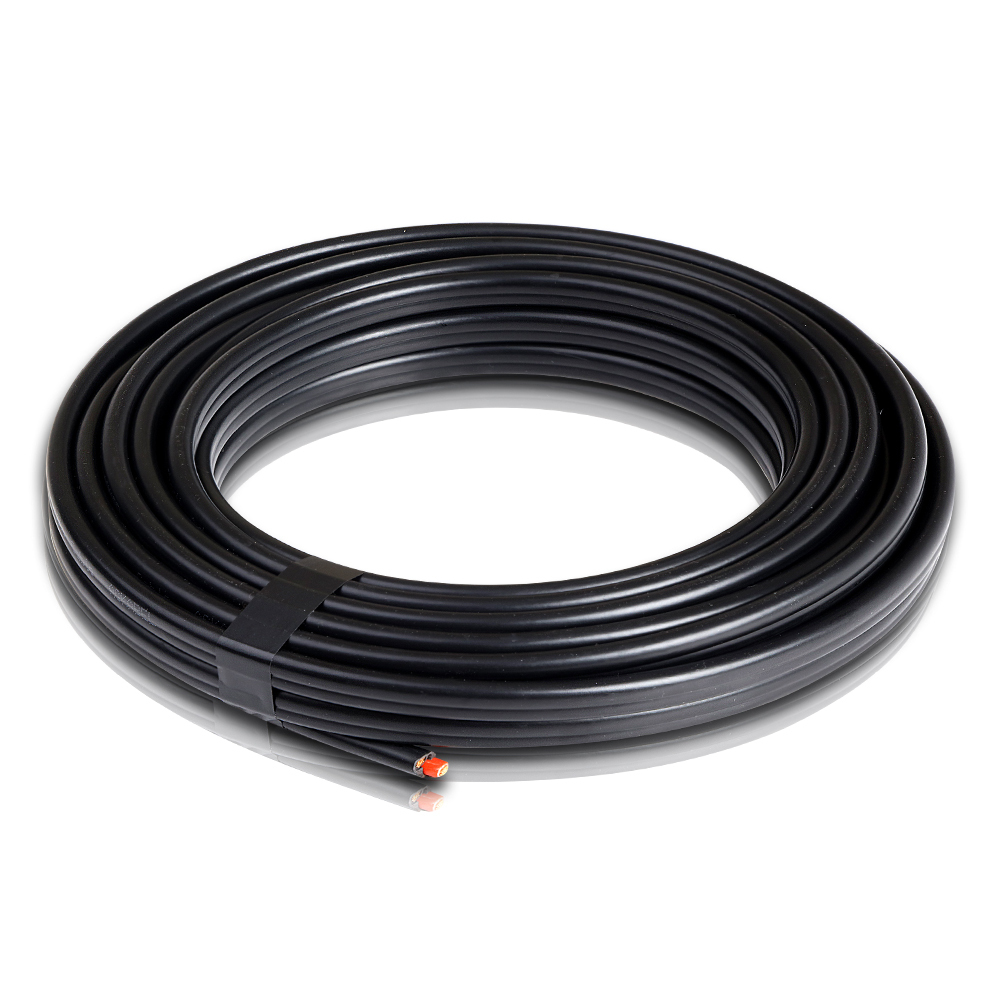

In StockTwin Core Wire 10M 8B&S 2 Sheath Electrical Cable Automotive CARAVAN Trailer
With its twin core design, our B & S Twin Cable Sheath Wire is one of the best in the market. Comprising pure oxygen-free copper and a highly durable and strong reinforced PVC cover with black sheathing, our twin core sheath wire can handle any application with ease and confidence. While ordinary wires has on average capacity, our B & S cable has a higher capacity. And that can make a difference with a good project and a great one. Not least. The wire is waterproof, fire-retardant and can withstand extreme temperature changes without losing any of its effective conductivity. The wire is SAA-certified and conforms to strict Australian standards.
Features
8B&S twin sheath automotive cable
Oxygen-free copper core conductor
Low eccentricity
Reinforced PVC material
SAA-certified
Specifications:
Conductor: Oxygen-free plain copper wire to AS/NZ 1125
Insulation: V90 PVC to AS/NZ 3808
Sheath: 5V90 PVC to AS/NZ 3808
Amp rating: 59
No. of cores: 2
Cable Length: 10m
Strand no. diameter: 96/0.32mm
Wire Gauge:9 AWG
Nominal area: 7.2mm²
Nominal O.D.: 7.1mm x 12.5mm
Colour: Black sheathing
Conductor resistance <2.38Ω/Km(20?)
Dielectric strength(kV/sec AC):2.5/60
Unaged acceptable tensile strength ≥ 12.5Mpa
Unaged acceptable ultimate elongation ≥130%
Assembly Required: No
Number of Packages: 1
Package Content
Twin core cable x1
This product comes with 1 year warranty
(TWIN-CABLE-8BS-10)
SKU | TWIN-CABLE-8BS-10 |
Barcode # | 9350062179918 |
Shipping Weight | 2.3000kg |
Shipping Width | 0.070m |
Shipping Height | 0.040m |
Shipping Length | 0.070m |
Shipping Cubic | 0.000196000m3 |
Unit Of Measure | Carton |
